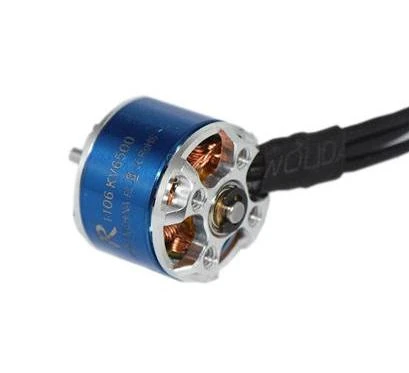

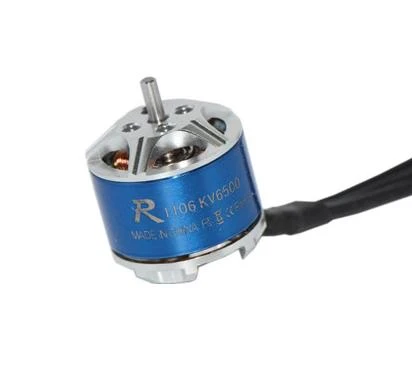

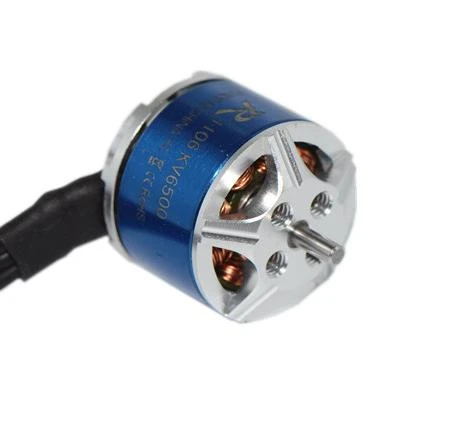

Sunnysky R1106 5500 RPM/V 8g Outrunner

HyperFlight have sourced the good quality SunnySky R1106-5500 outrunner that fits the VM 25mm Spinner for 11xx Motors.

We measured the motor constants and actually found the Kv is 5600 RPM/V. The smallest available prop (VM or Graupner 4.7×2.3) is actually too large for this tiny motor and the power should be limited to 10A max by limiting the thottle channel throw to approx 50%.

Sunnysky R1106-5500 Specifications
Motor name	Sunnysky R1106-5500	outrunner
Motor+GB weight	7.7 g	0.27 oz
Motor diameter	14.2 mm	0.56 in
Motor length	13.6 mm	0.54 in
Lead length	5.0 cm	1.97 in
Shaft diameter	1.5 mm	0.06 in

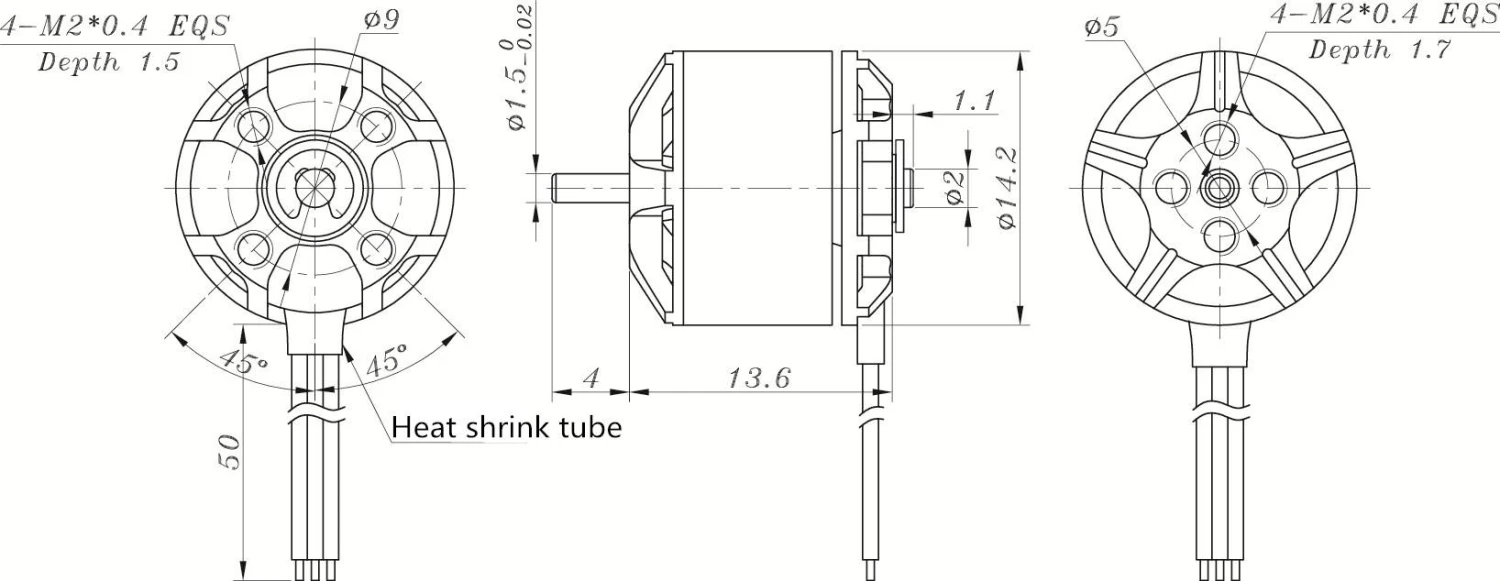

Mounting info	4 M2*0.4 holes on a 9 mm diameter circle
Measured Rm	121 mR
Measured Kv	5600 RPM/V
Measured Io	0.7 A @ 7 V
Max efficiency (7 V)	79 % @ 6 A
Operating efficiency (7 V)	77 % @ 10 A
Motor & gearbox Km	4.9 Nm/W^.5 X1000
Motor & gearbox Km/Kg	637 Nm/(W^.5 Kg)
Recommended battery	2S LiPo
Rec max LiPo capacity	0.3 Ah
Supplied accessories	4 Mounting screws

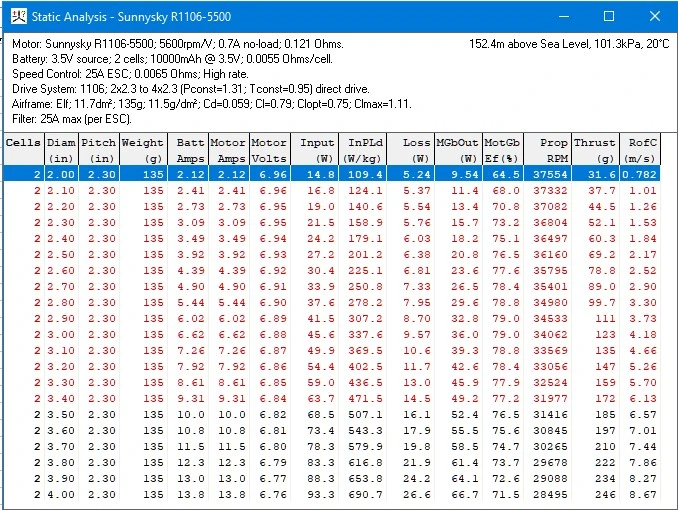

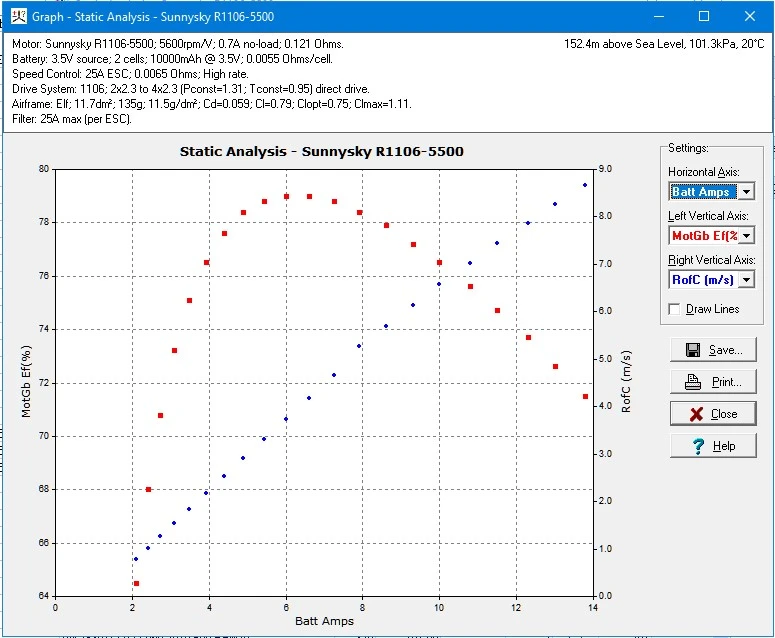

2S LiPo Performance
Recommended prop	3.5×2.3
Input power	70 W on 3.5×2.3 prop
Current	10 A on 3.5×2.3 prop
Rate of climb	8 m/s for 150 g glider
