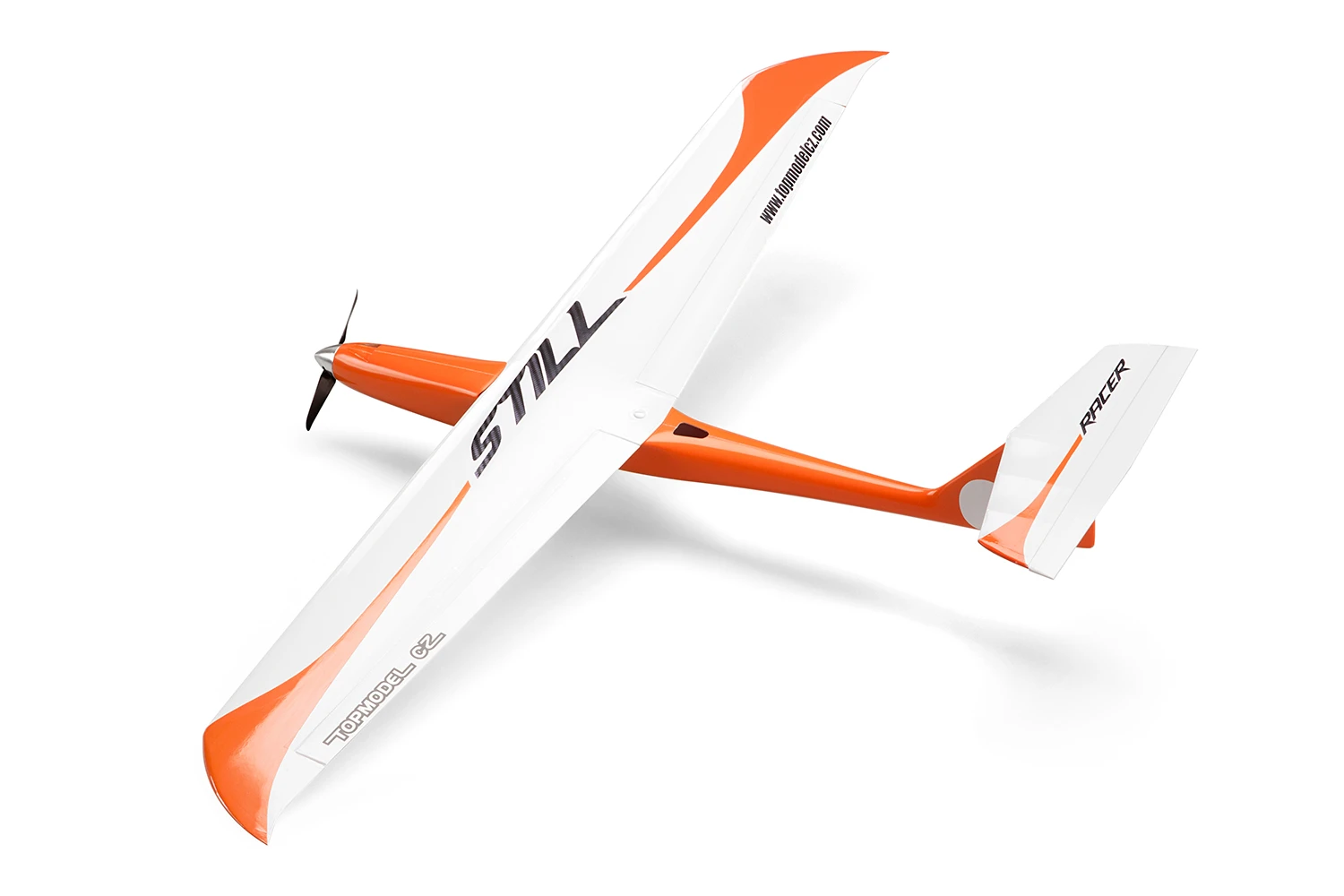

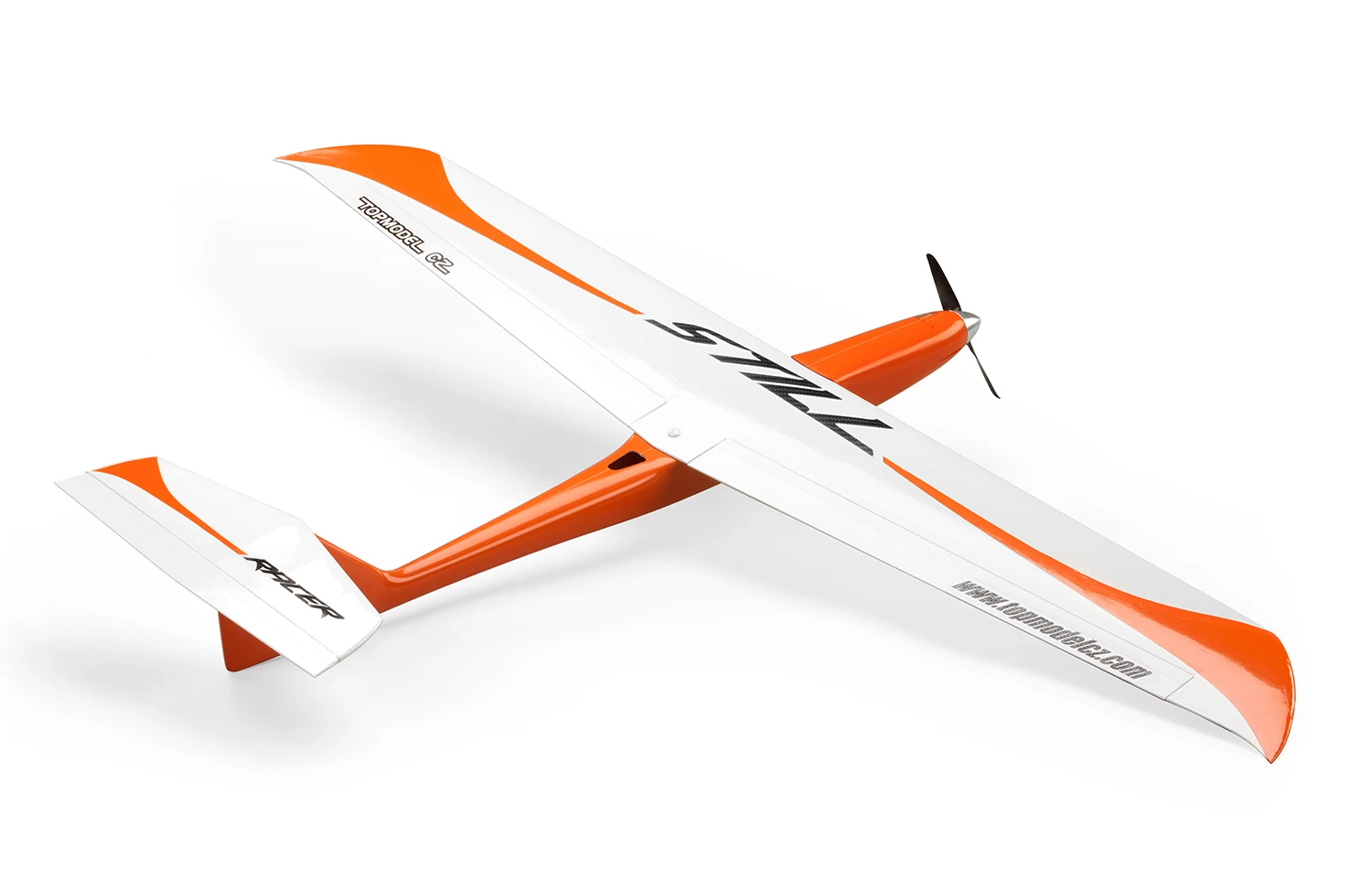

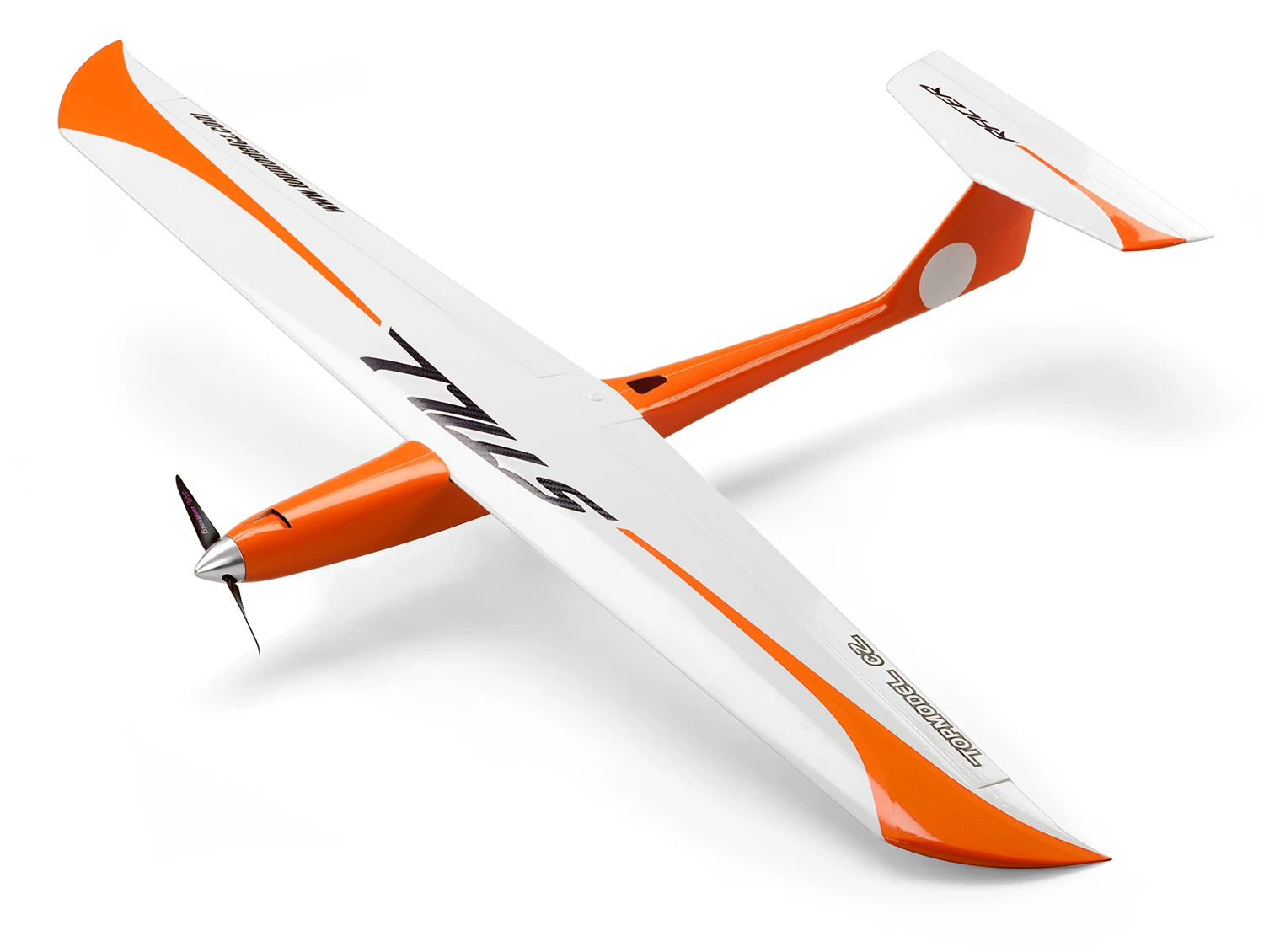

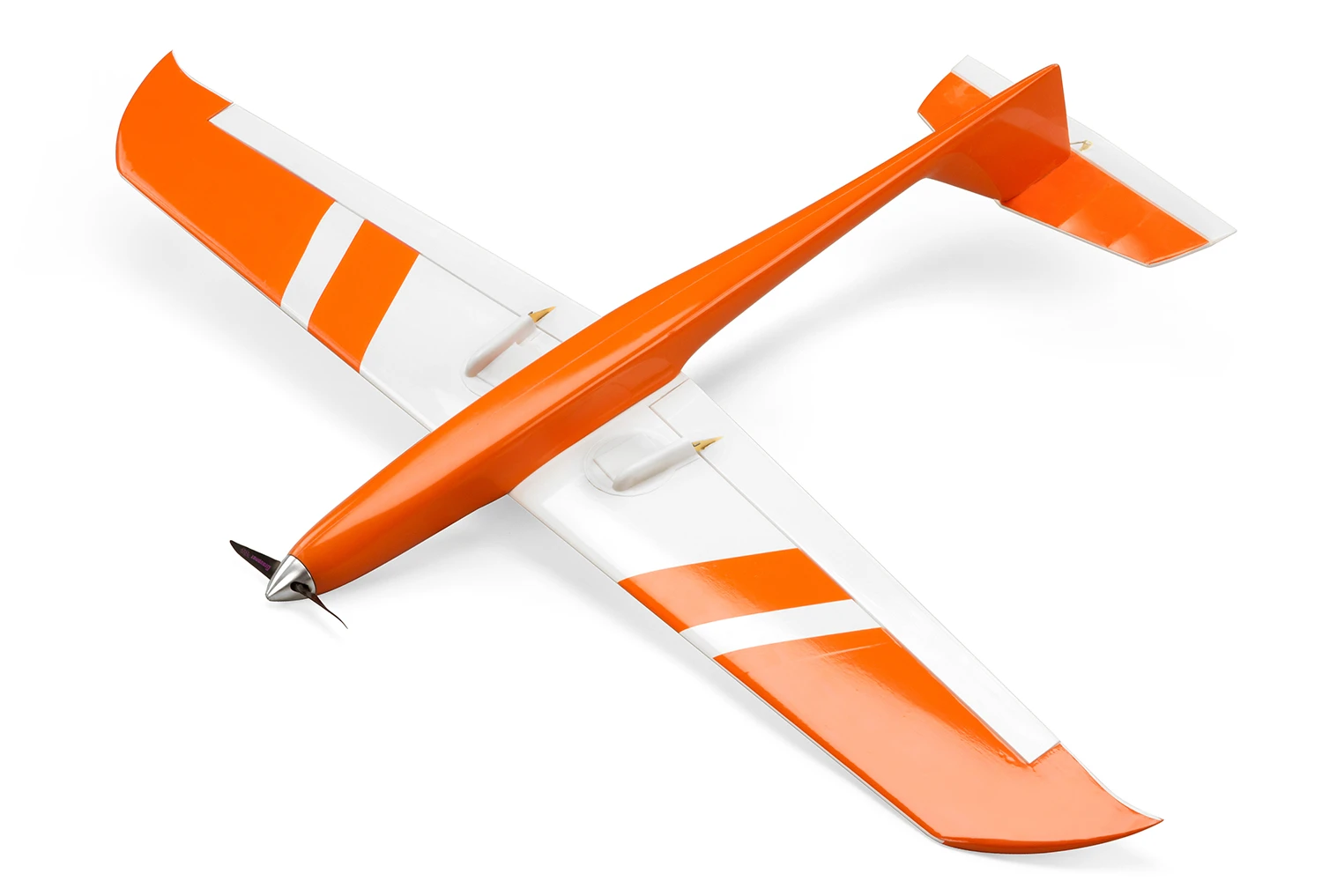

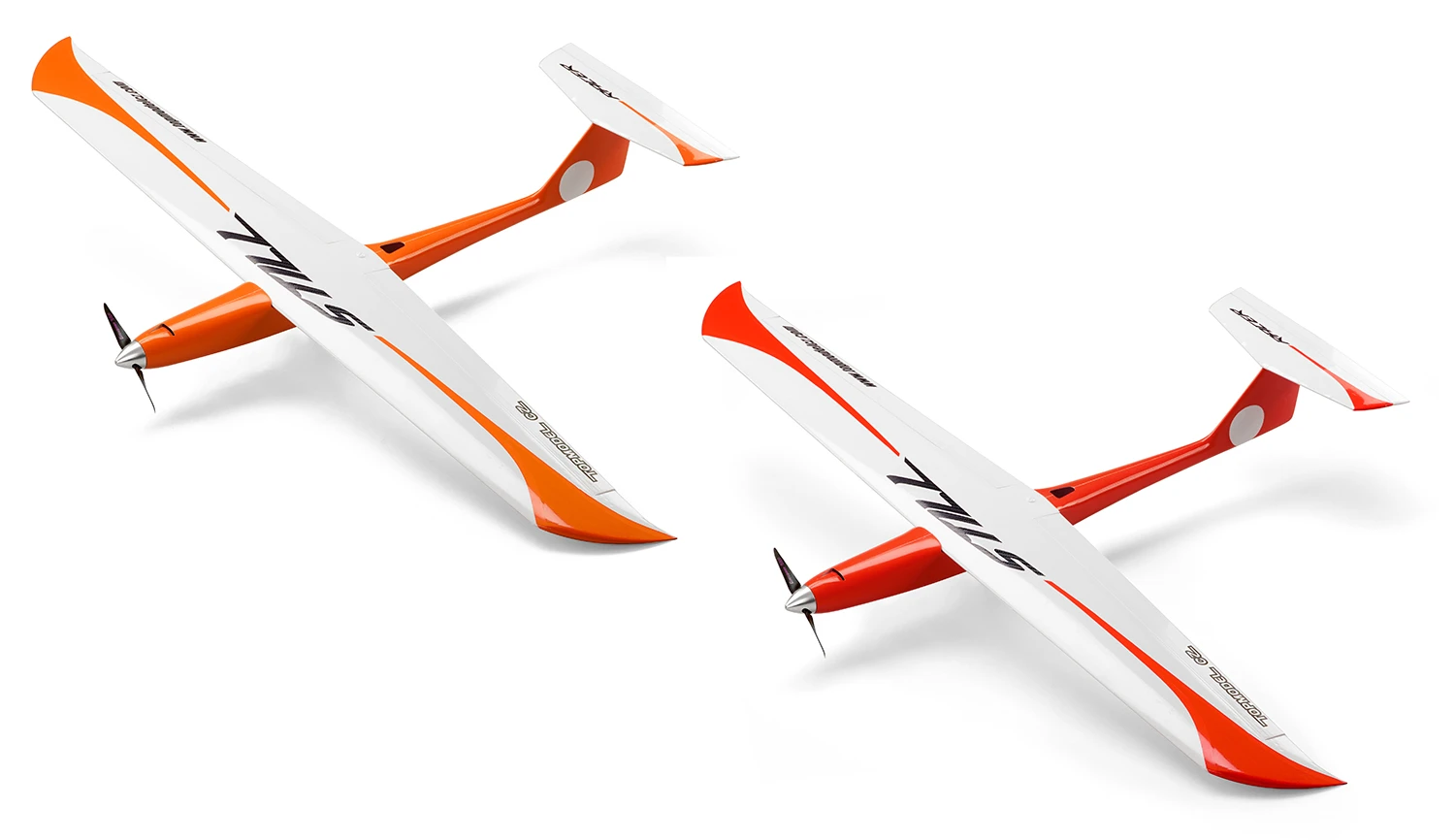

Still Racer 1m

The Still Racer is a great machine for fast flying. It has a wide speed range, very forgiving flight characteristics, and is a perfect first racer. It is supplied expertly covered in Oracover film with an attractive racing colour scheme, with only the RC and powertrain to install.

The Still’s thin but forgiving airfoil as well as the slightly swept forward wing give the model excellent flight characteristics and high speed performance. Thanks to the very clean airframe the model has a good glide angle and landings are easy.

The Still Racer has a carbon-reinforced fiberglass fuselage, a one piece polystyrene/balsa wing, and built-up carbon/balsa tailplane. The Still is agile and strong enough for racing all high G aerobatics.

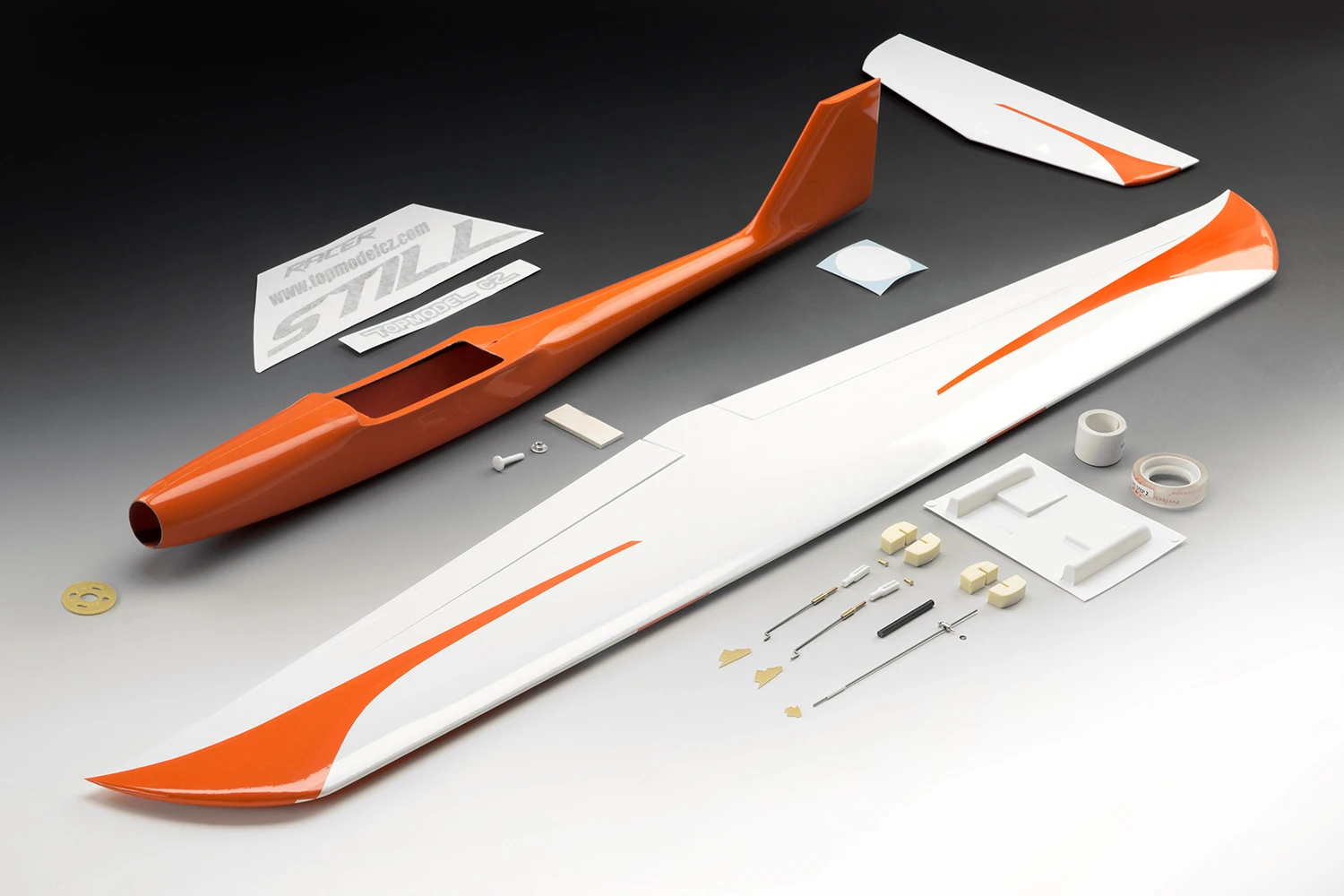

The kit contains:

• Light fiberglass fuselage reinforced with carbon
• One-piece polystyrene-balsa wing with ailerons, locally reinforced with fiberglass, all covered with Oracover®

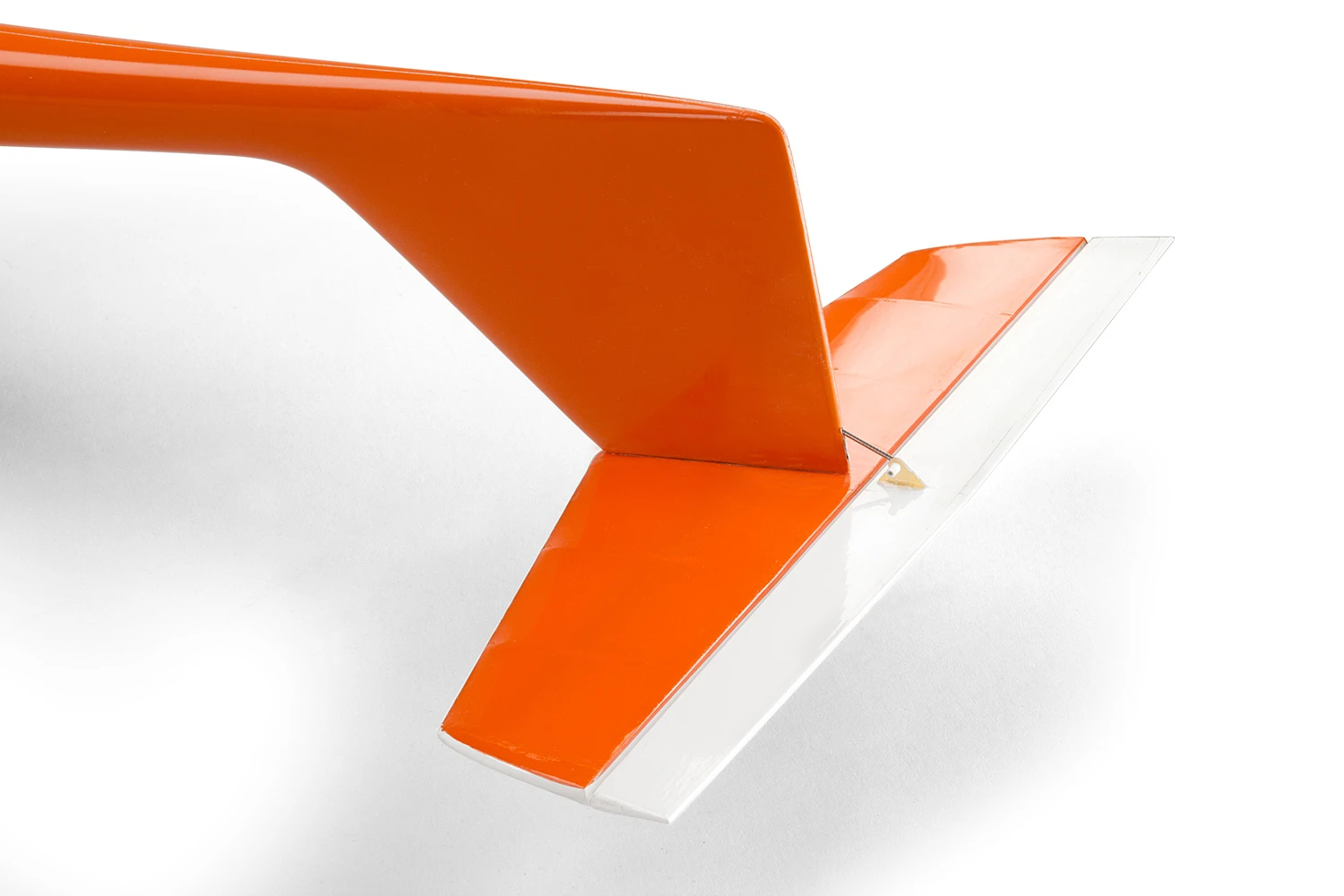

• Light structural balsa tail surfaces with carbon spar and leading edge, covered with Oracover®
• Vinyl CNC cut stickers in imitation carbon design

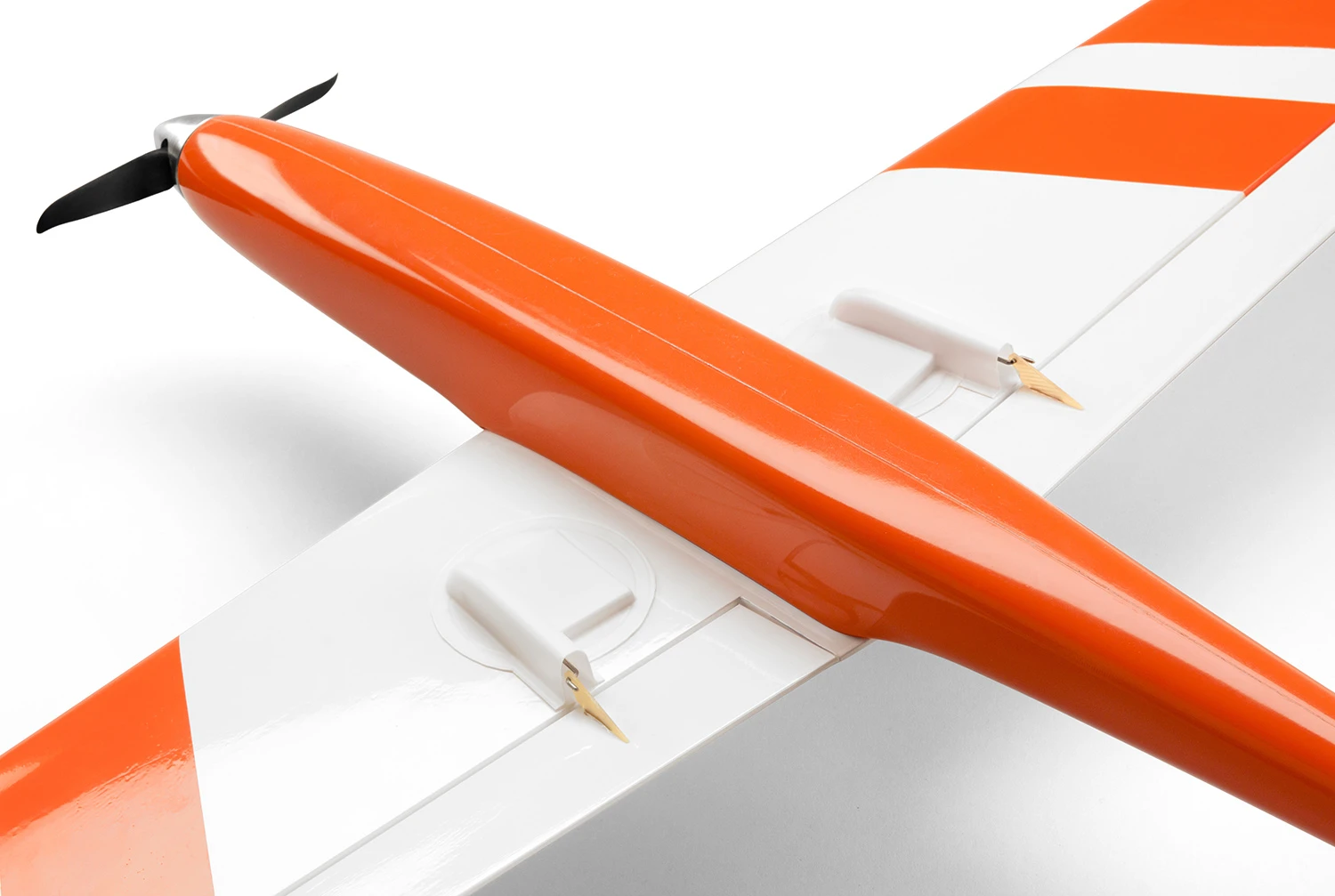

• Top quality accessories (servo covers, servo mount, rods, ending ties, control horns, tape for sticking flaps, fiberglass motor mount)
• Complete assembly manual with step by step illustrations

Still Specifications
Wing span	1.00 m	39.4 in
Wing area	13.4 dm2	208 sq in
Length	70 cm	27.6 in
Flying weight from	600 g	21.2 oz
Wing loading	44.8 g/dm	14.7 oz/sq ft
Aspect ratio	7.5
Wing airfoil	Proprietary
Dihedral (EDA)	0.0º
Spinner Diameter	30 mm
Centre of Gravity	45-47 mm from wing leading edge
Controls	Aileron, elevator, throttle

Still Typical Weights
Fuselage & fin	70 g	2.5 oz
Wings	140 g	4.9 oz
Tailplane	13 g	0.5 oz
Accessories	10 g	0.4 oz
Total structure	233 g	8.2 oz
Receiver	8 g	0.3 oz
Elevator servo	10 g	0.4 oz
Aileron servos	18 g	0.6 oz
Speed control	35 g	1.2 oz
Motor	100 g	3.5 oz
Prop & spinner	16 g	0.6 oz
Battery	180 g	6.3 oz
Flying weight	600 g	21.2 oz

Recommended Control Throws & Mixes
Elevator	4 mm up, 4 mm down
Ailerons	4 mm up, 3 mm down

Recommended Servos
Elevator	KST X08, MKS DS75K, MKS DS6100, MKS HV6100, Blue Bird BMS-126, Blue Bird BMS-127
Ailerons (2 servos)	Ripmax SD150, KST X08, MKS DS75K, MKS DS6100, MKS HV6100, MKS HV6110, Blue Bird BMS-126, Blue Bird BMS-127

Recommended Powertrains
Mega 16/25/1.5, 4.7×4.7 55A ESC, 3S LiPo, 500W
Mega 16/15/3, 4.7×4.7 35A ESC, 3S LiPo, 350W
Mega 16/15/2, 4.7×4.7 50A ESC, 2S LiPo, 400W
Mega 16/15/3 4.1×4.1, 50A ESC, 4S LiPo, 500W
Mega 16/15/2, 4.1×4.1 60A ESC, 3S LiPo, 600W
Mega 16/15/3 4.1×4.1 60A ESC, 4S LiPo, 650W

Max battery size:
3S 2.3Ah LiPo
4S 1.8Ah LiPo

Preliminary info, subject to change.
