Nan Orion V2 2.5m

The Nan Orion V2 is a medium fast 2.4m span electric glider. The Orion V2 is much loved because of its spirited flying performance. It can be flown fast and zoomed around the sky, but can also be slowed down and thermaled with ease. The two piece wing uses the same wing profile as the Explorer. The Orion is ideal for sport and fun flying both from flat field and slopes. The Orion V2 is aerobatic, easy to fly and an excellent thermal soarer.

This version has a slimmer carbon fuselage and a new molded tailplane and fin. These enhancements make an already great electric glider even better. The very nicely finished two piece wings are hollow molded and have a carbon layup and substantial spar and wing joiner.

The all carbon fuselage will take a 3S or 4S 2Ah LiPo (though we would use smaller capacity). The fuselage has two Bowden cables fitted, with 1.5mm carbon rod inners. The accessory pack includes a 38mm plywood firewall and servo covers.

For the flap and aileron linkages either Integrated Drive Systems will be needed or for conventional control rods:

2 pr Brass M3 4mm Micro Horn
2 pr 40mm M2 Control Rods

See this RCGroups thread and RC-Network thread for more info.

Orion V2 Specifications
Wing span	2.4 m	95 in
Wing area	44.4 dm2	688 sq in
Length inc spinner	142 cm	55.7 in
Flying weight from	1110 g	39.2 oz
Wing loading	25.0 g/dm	8.2 oz/sq ft
Aspect ratio	13.2
Wing airfoil	Proprietary
EDA (dihedral)	4.0º
Spinner Diameter	38 mm
Centre of Gravity	93 – 105 mm from wing leading edge
Controls	Rudder, elevator, ailerons, flap, throttle

Orion V2 Recommended Servos
Elevator & rudder	MKS DS6100, MKS HV6100, KST X08, Blue Bird BMS-125WV, KST DS145, KST X10-710
Flap	MKS DS6100, MKS HV6100, MKS HV6110, Blue Bird BMS-125WV, KST DS135, KST X10 Mini, KST X10
Aileron	MKS DS6100, MKS HV6100, MKS HV6110, KST X08H, KST A08H, Blue Bird BMS-125WV

Orion V2 Control Movements
Rudder	25 mm each way
Elevator	14 mm up, 14 mm down
Ailerons	11 mm up, 6 mm down
Flap	80 degrees down
Thermal camber	flap 4 mm down, aileron aligned with flap
Speed camber	flap 4 mm up, aileron aligned with flap

Powertrain Recommendations
Powerline Micro 1025/10	3S 1Ah LiPo, 15×10 prop
Leomotion L3013-4550	3S 1.2Ah LiPo, 15×9 prop
XPower F2925/8 Windy	3S 1.5Ah LiPo, 11×7 prop
Hacker A20-6XL geared 4.4:1	3S 1.5Ah LiPo, 16×9 Aeronaut prop
Mega 16/25/3	direct drive, 3S 1.2Ah LiPo, 11×6 prop

Orion V2 Typical Weights
Fuselage	162 g	5.7 oz
Left wing	227 g	8.0 oz
Right wing	233 g	8.2 oz
Fin	28 g	1.0 oz
Tailplane	34 g	1.2 oz
Wing joiner	28 g	1.0 oz
Accessories	22 g	0.8 oz
Total structure	734 g	25.9 oz
Wiring	20 g	0.7 oz
Control rods	8 g	0.3 oz
Receiver	8 g	0.3 oz
Rudder servo	9 g	0.3 oz
Elevator servo	9 g	0.3 oz
Wing servos (4)	36 g	1.3 oz
Speed control	30 g	1.1 oz
Motor	105 g	3.7 oz
Prop & spinner	26 g	0.9 oz
Battery	125 g	4.4 oz
Flying weight from	1110 g	39.2 oz

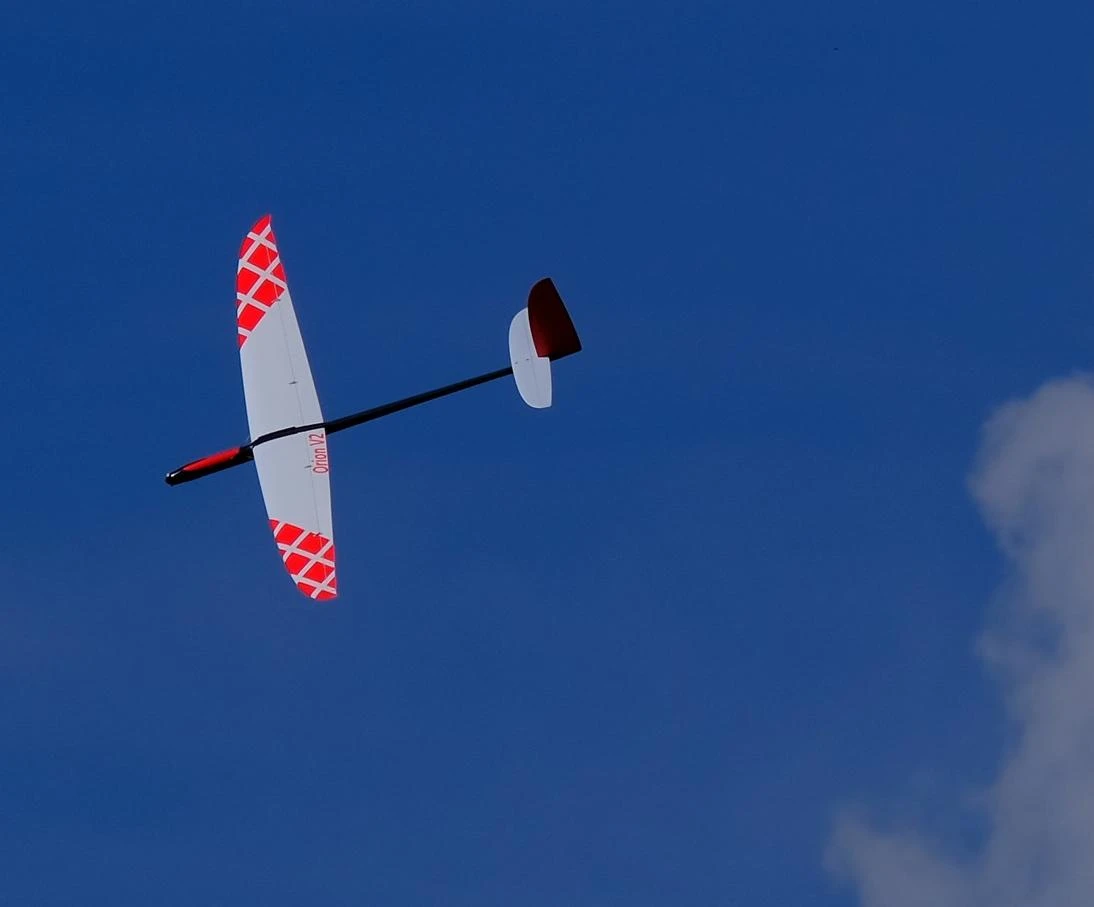

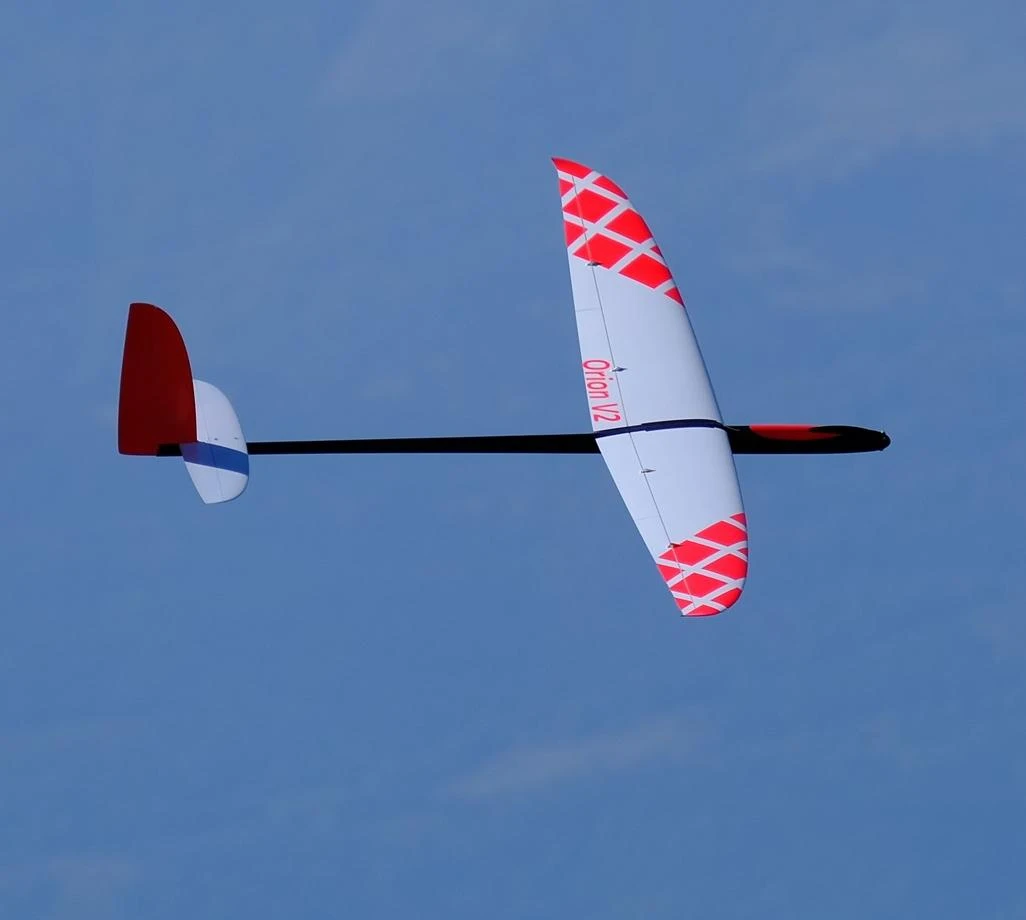

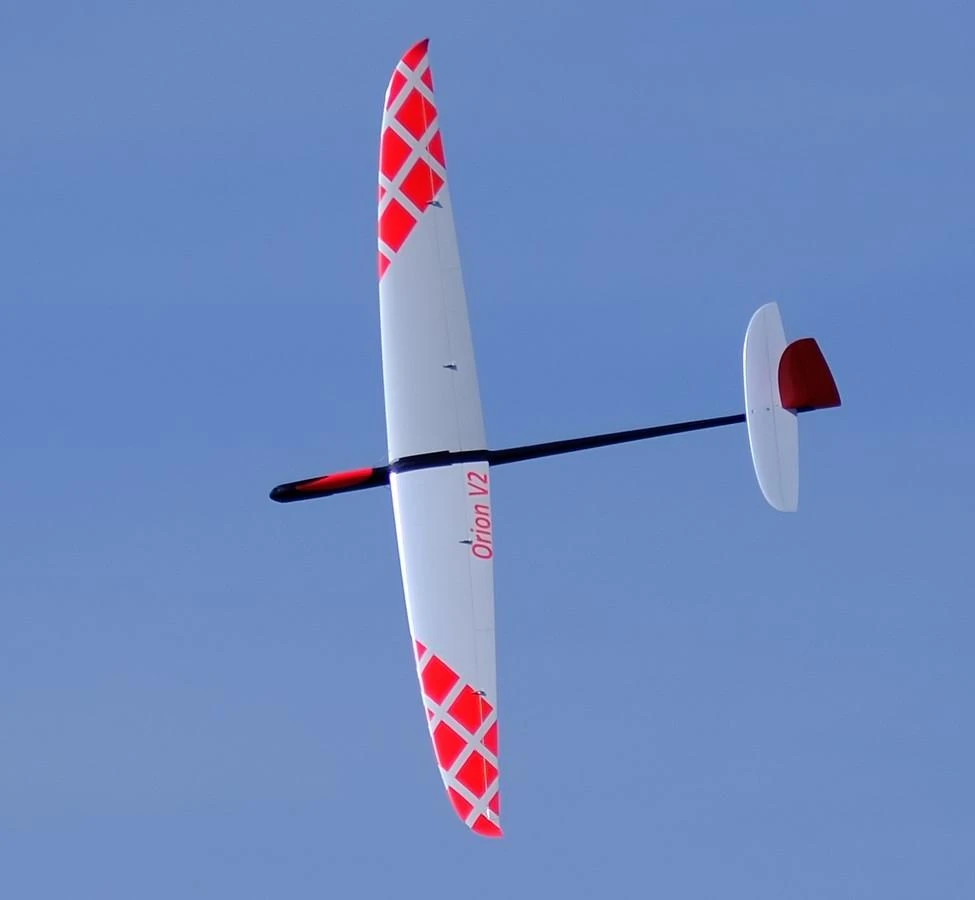

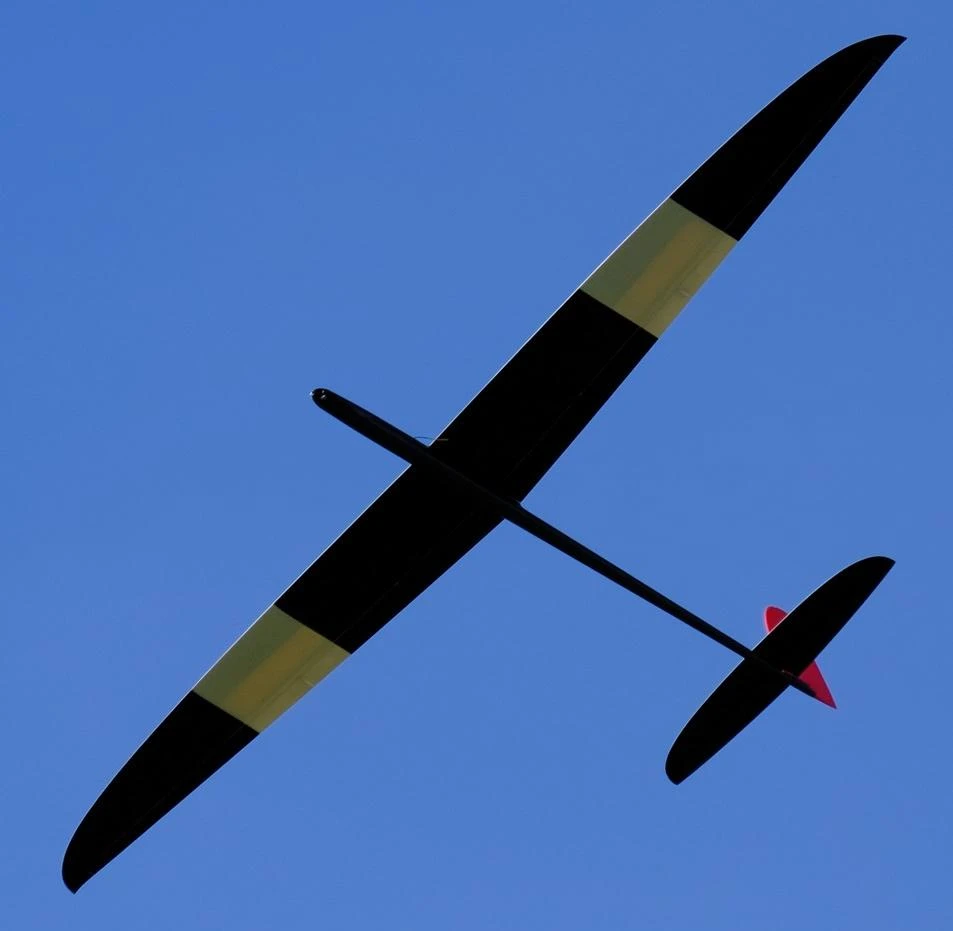

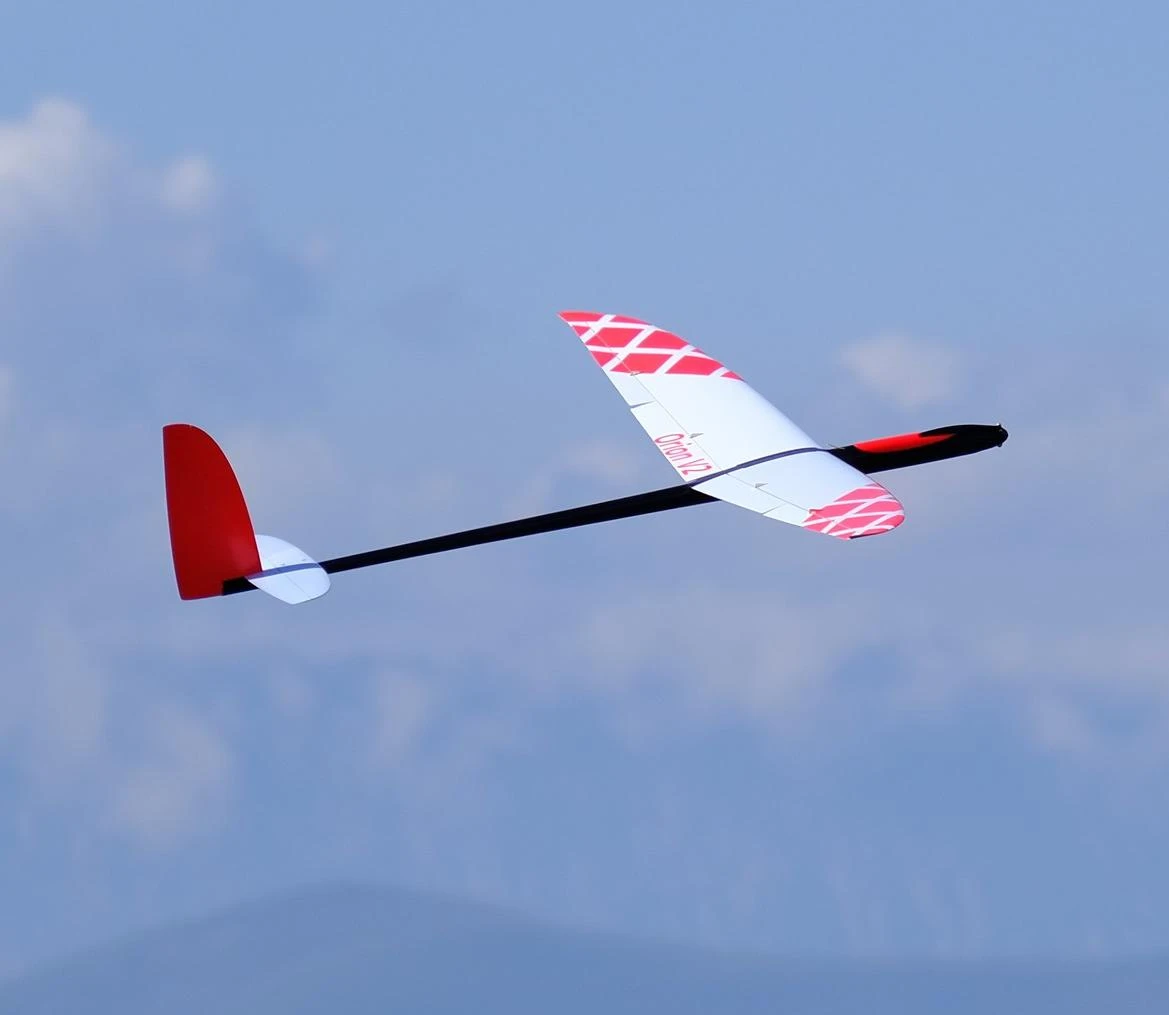

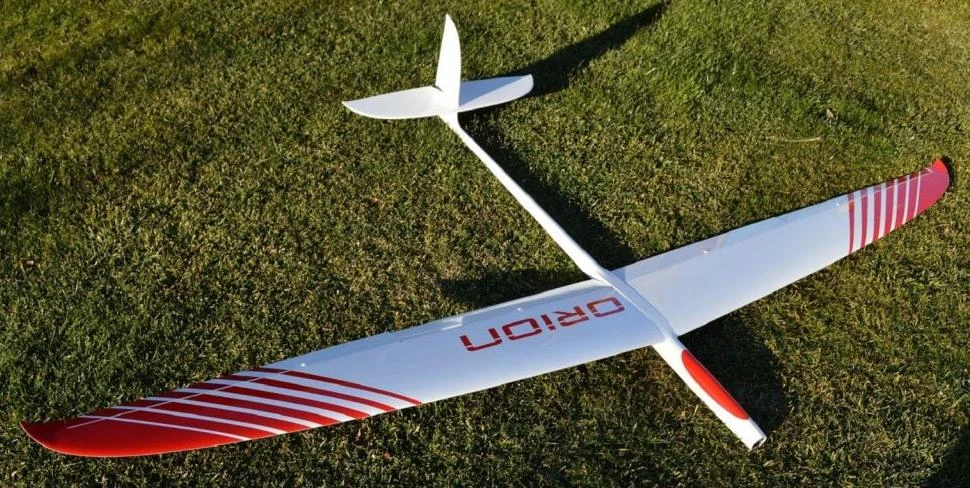

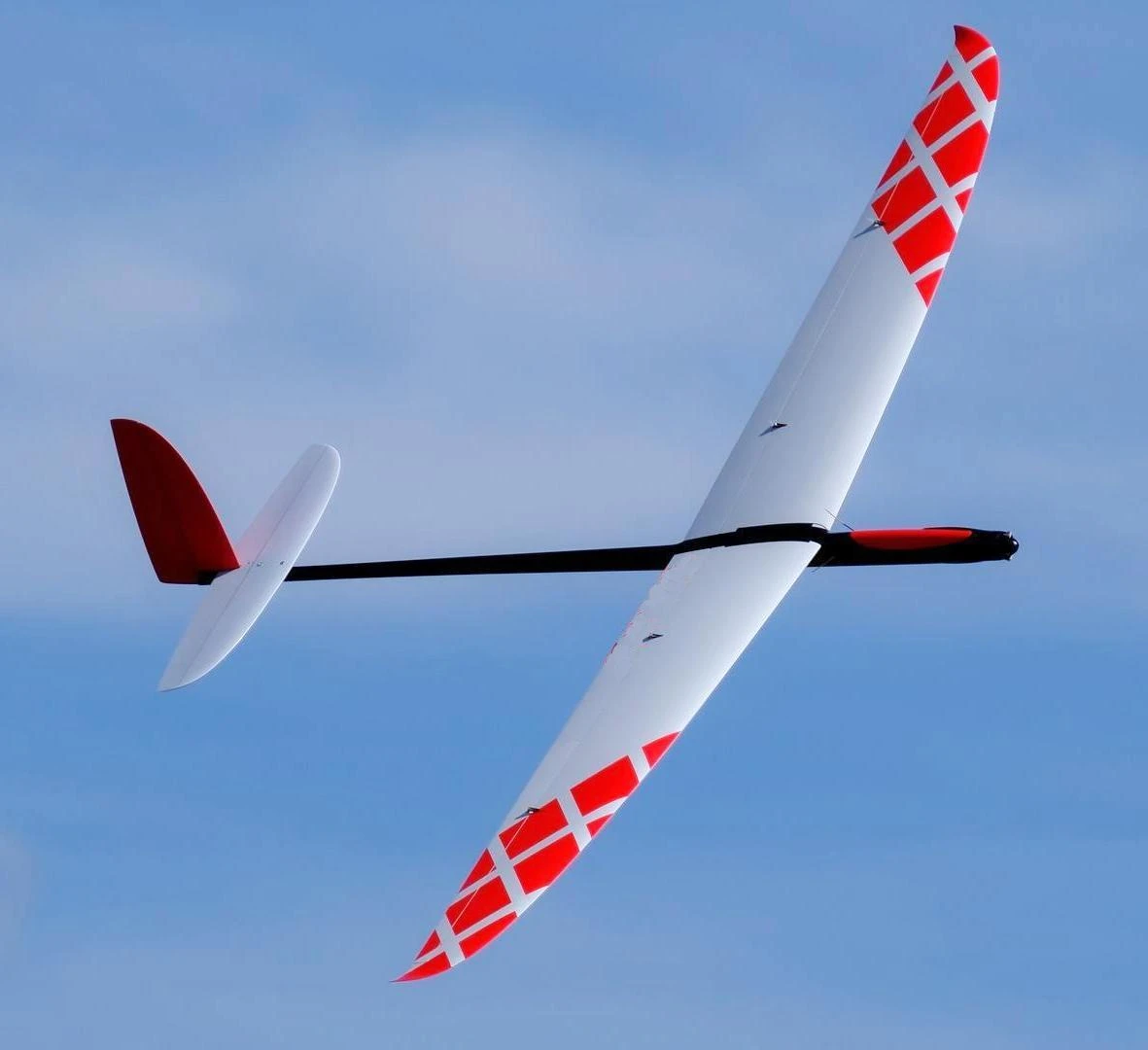

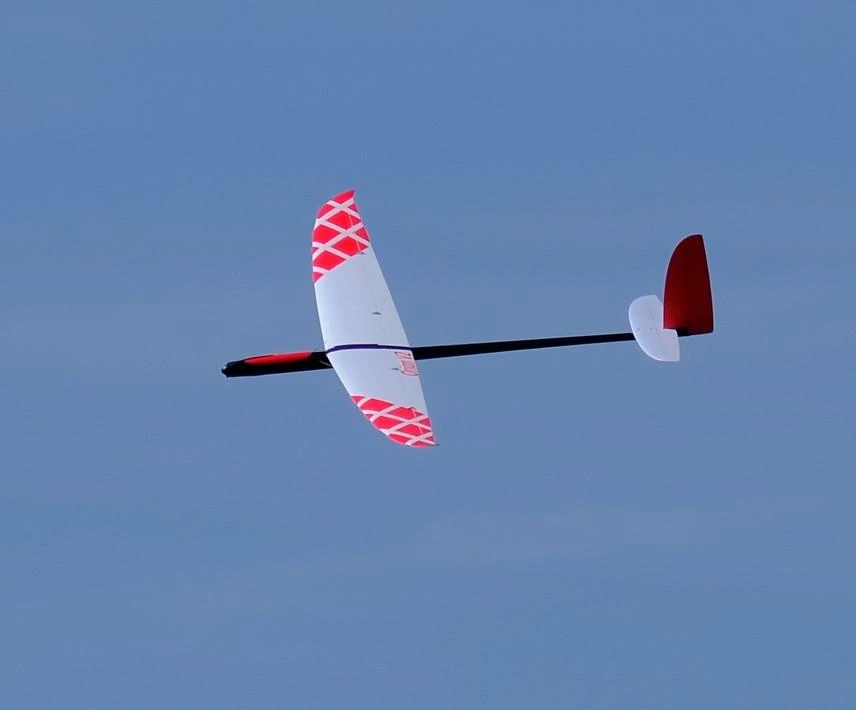

Thanks to Pierre Rondel for use of his photos.
