MKS HV69 Servo – 10.2Kg.cm 0.10s 21.0g 13mm
Original price was: $61.56.$43.09Current price is: $43.09.
- 100% High Quality Guarantee
- Easy, Fast Returns Guarantee
- The Quality Choice for Smart Shoppers
- Efficiency meets excellence in customer care.

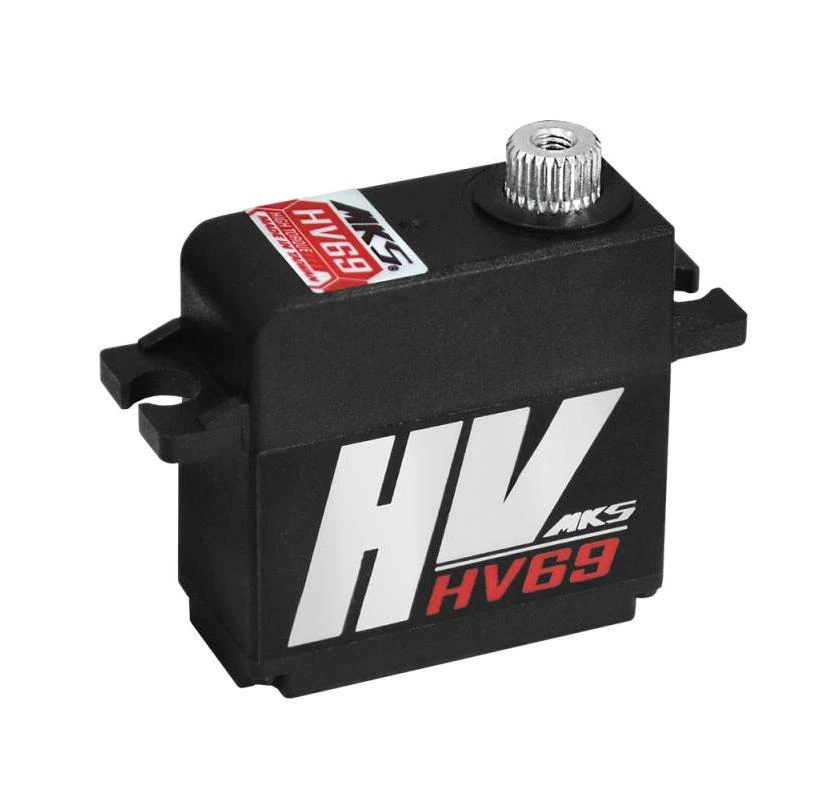

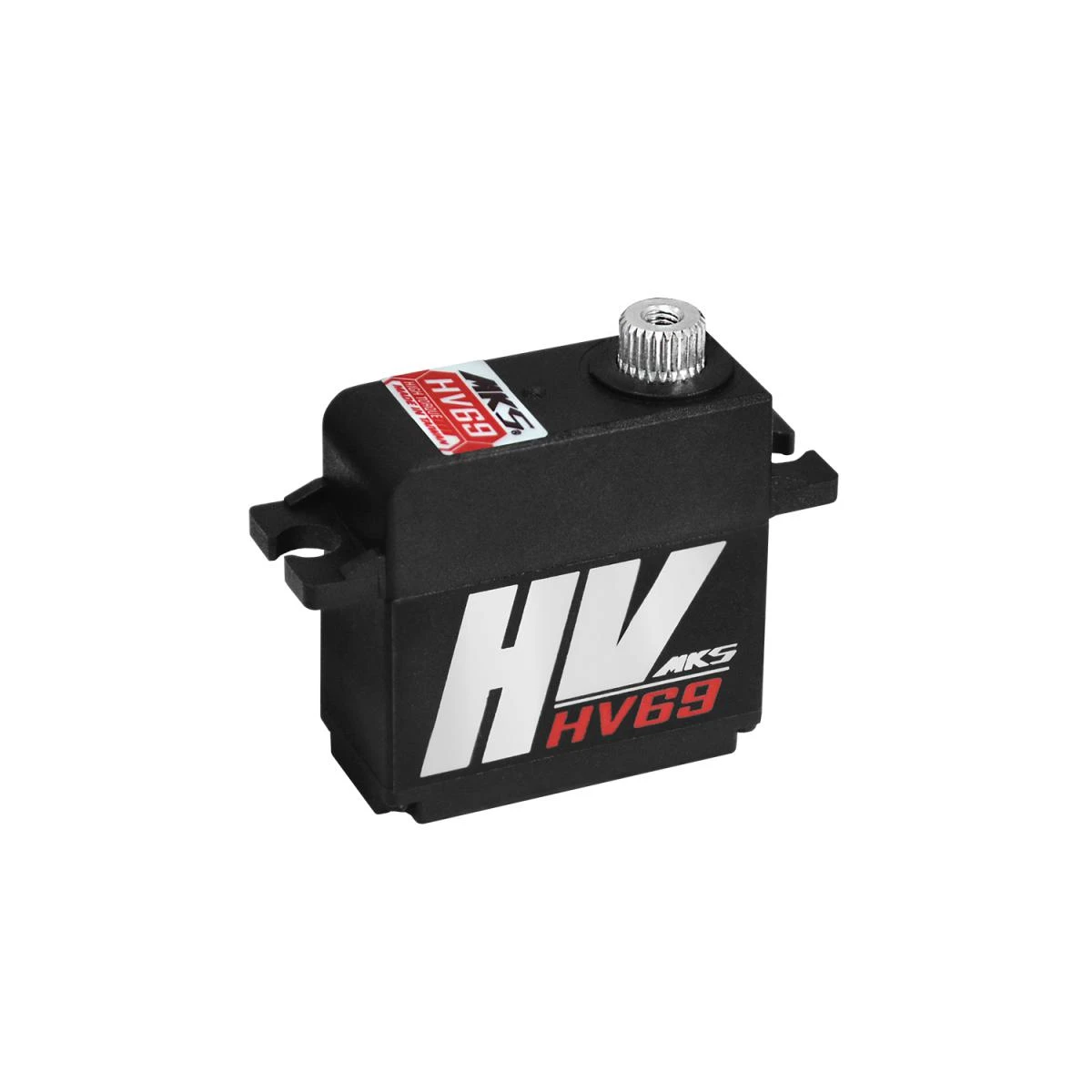

The MKS HV69 servo is a well priced high performance servo with excellent torque and speed. At 13 mm thick it is suitable for mounting in the fuselage or in thicker wings and tails.

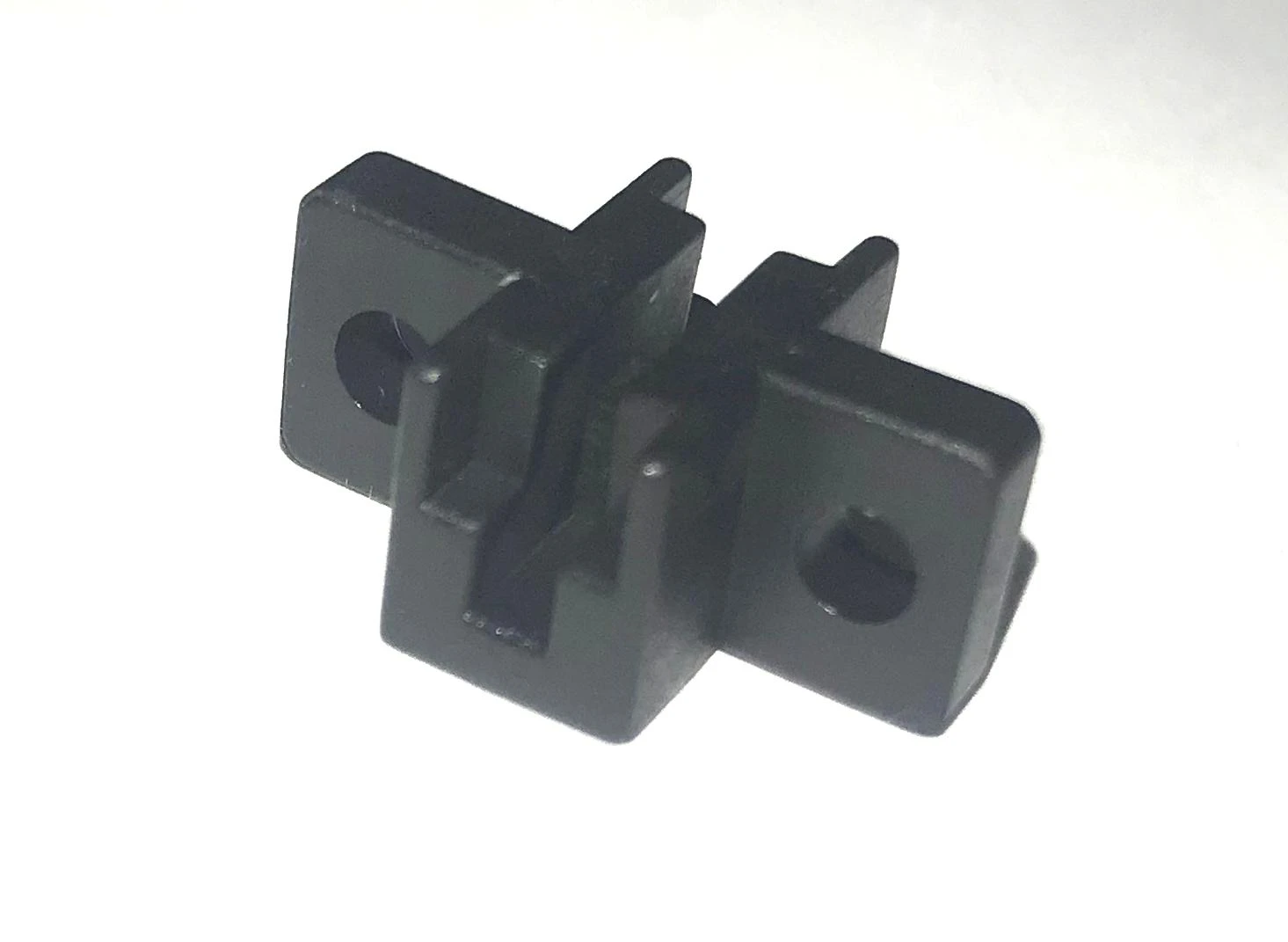

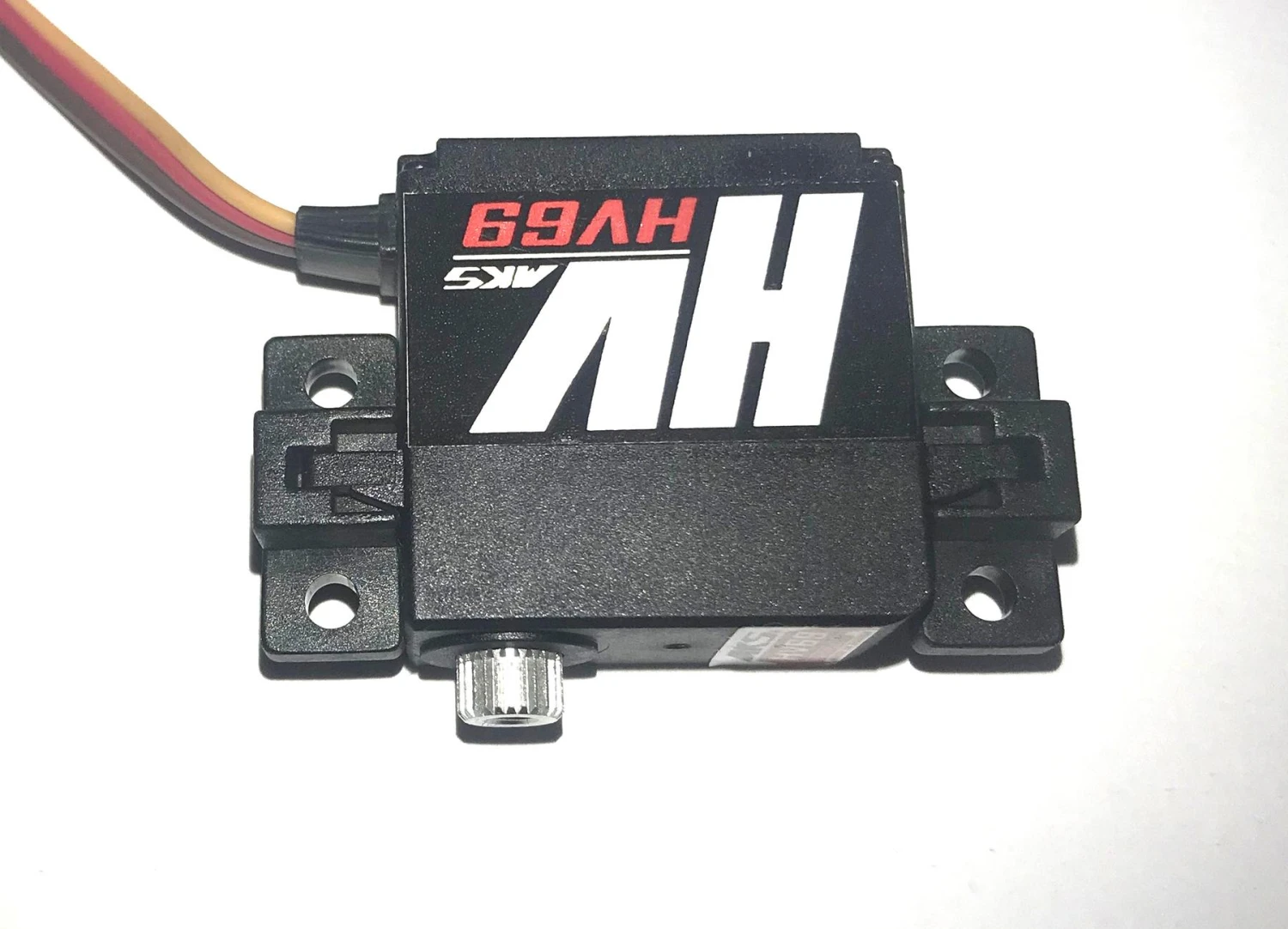

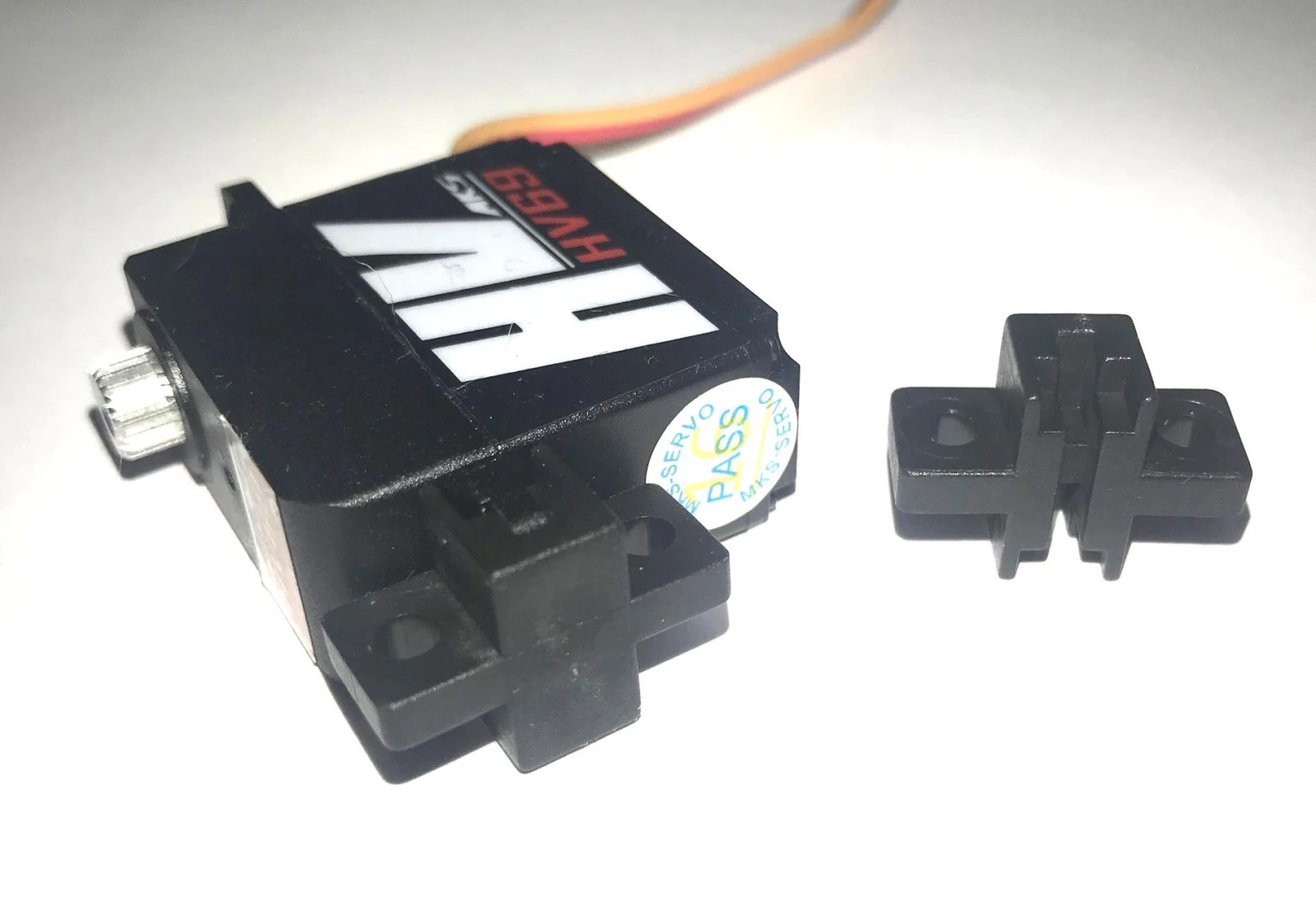

It is supplied with very useful wing mounting brackets which allow it to be mounted easily horizontally as a wing servo, in addition to conventional mounting.
| MKS HV69 Servo Specifications | ||
|---|---|---|

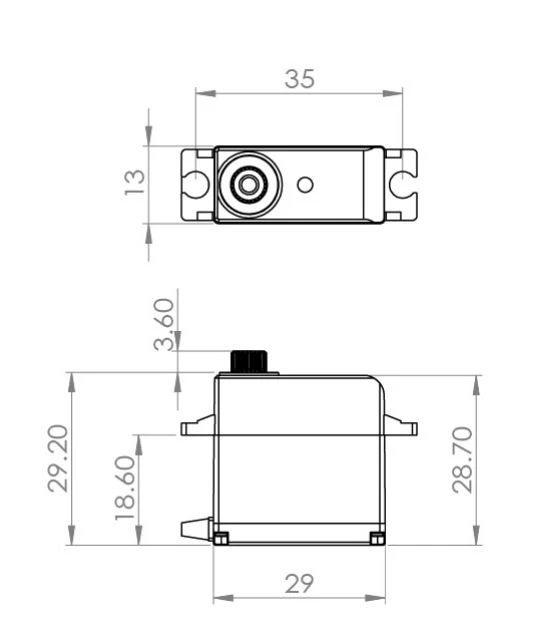

| Body dimensions | 29.0 mm wide x 13.0 mm thick x 29.0 mm high | 1.14″ wide x 0.51″ thick x 1.14″ high |
| Max dimensions | 40.0 mm wide x 13.0 mm thick x 34.0 mm high | 1.57″ wide x 0.51″ thick x 1.34″ high |
| Stall torque (4.8V) | 6 Kg.cm | 83 oz.in |
| Stall torque (6V) | 7.5 Kg.cm | 104 oz.in |
| Stall torque (8.2V) | 10.2 Kg.cm | 142 oz.in |
| Weight | 21 g | 0.74 oz |
| Lead length | 23 cm | 9.1 in |
| Operating speed (4.8V) | 0.17 sec/60° | |
| Operating speed (6V) | 0.13 sec/60° | |
| Operating speed (8.2V) | 0.1 sec/60° | |
| Operating voltage | 4.8V to 8.2V | |
| Operating temperature | 0 to 50 °C | |
| Bearings | 2 ball bearings | |
| Gear material | Metal alloy | |
| Case material | Nylon | |
| Motor type | Coreless DC motor | |
| Working frequency | 333 Hz | |
| Dead band/resolution | 1 µs | |
| Pulse width for ± 60º | (L) 920 µs – (0°) 1520 µs- (R) 2120 µs | |
| Digital | Yes | |
| Programmable | No | |
| Position feedback | Potentiometer | |
| Supplied accessories | 2 plastic output arms, 2 arm retaining screws, 2 soft mounting gromets, 2 wing mounting brackets | |
| Optional accessories | MKS Short Metal Servo Output Arms, MKS Long Metal Servo Output Arms | |
