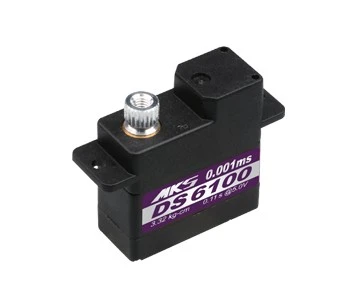

MKS DS6100 Servo – 3.3Kg.cm 0.11s 9.5g 10mm

The MKS DS6100 is specially optimised for glider fliers, with excellent torque and precision, and a very low deadband. It is a very high torque thin 9.5g servo suitable for many wing and fuselage applications. It has more torque and a better geartrain than all other servos of this size and price range.

At only 10mm thick this superb wing-servo can easily fit in thin wings. but with a low height of 23.5mm it can also fit in small DLG and other fuselages. With good 3.3 kg.cm torque and a reasonably good 0.12s/60° speed it is excellent for flaps, ailerons, elevator and rudder on many high performance gliders, DLGs, electric gliders, and faster sport slopers.

The extreme reliability and performance of these servos also makes them very suitable for use in film and motion picture industry special effect departments. They are also used in robotic, drone, UAV, UAS, academic research, military, and other highly demanding applications.

MKS DS6100 Servo Specifications
Body dimensions	22.5 mm wide x 10.0 mm thick x 23.5 mm high	0.89″ wide x 0.39″ thick x 0.93″ high
Max dimensions	31.0 mm wide x 10.0 mm thick x 24.5 mm high	1.22″ wide x 0.39″ thick x 0.96″ high
Stall torque (4.8V)	3.19 Kg.cm	44 oz.in
Stall torque (5V)	3.32 Kg.cm	46 oz.in
Stall torque (5V)	3.32 Kg.cm	46 oz.in
Weight	9.5 g	0.34 oz
Lead length	18 cm	7.1 in
Operating speed (4.8V)	0.12 sec/60°
Operating speed (5V)	0.11 sec/60°
Operating speed (5V)	0.11 sec/60°
Operating voltage	4.8V to 5V
Operating temperature	-10 to 50 °C
Bearings	2 jewel bearings + 1 bronze bush
Gear material	Aluminium-magnesium alloy
Case material	Nylon
Motor type	Coreless DC motor
Working frequency	333 Hz
Dead band/resolution	1 µs
Pulse width for ± 60º	µs
Digital	Yes
Programmable	No
Position feedback	Direct drive potentiometer
Supplied accessories	2 plastic output arms, 2 arm retaining screws, 2 mounting screws
Optional accessories	Ply frame for MKS DS6100, Frame with bearing for the MKS DS6100, Integrated Drive System/Mono for MKS DS6100, MKS Plastic Servo Output Arms, MKS Heavy Duty Plastic, MKS Short Metal Servo Output, MKS Long Metal Servo Output Arms, Replacement Gear Set for M

Although the servo is specced for 4.8V to 5V an MKS engineer stated 5.5V is okay.
