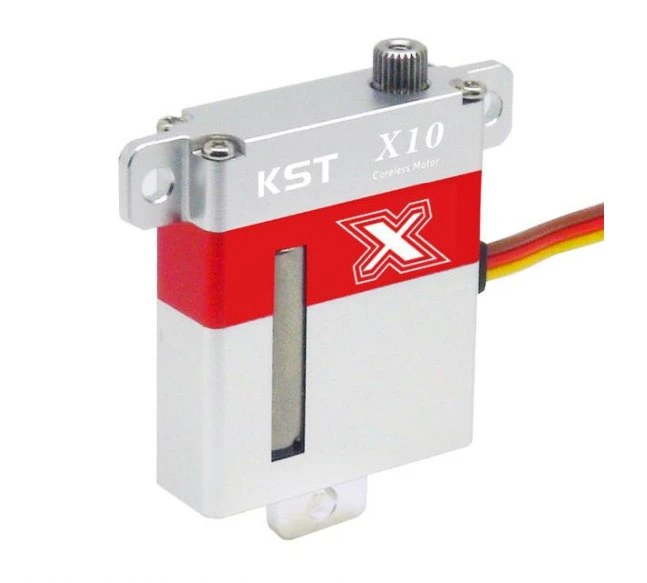

KST X10 V8 Wing Servo – 10.8Kg.cm 0.12s 28.0g 10mm

New KST X10 V8 wing servo is a high and medium voltage MKS DS6125 / KST DS125 sized servo with a similar or better speed and torque to the new MKS HV6130. The KST X10 V8 has a hardened steel drive train and a coreless motor capable of running all the way from 4.8V to 8.4V (4S NiMH to 2S LiPo) making these servos ideal for electric powered models (most ESCs output 5.5V) as well as most gliders.

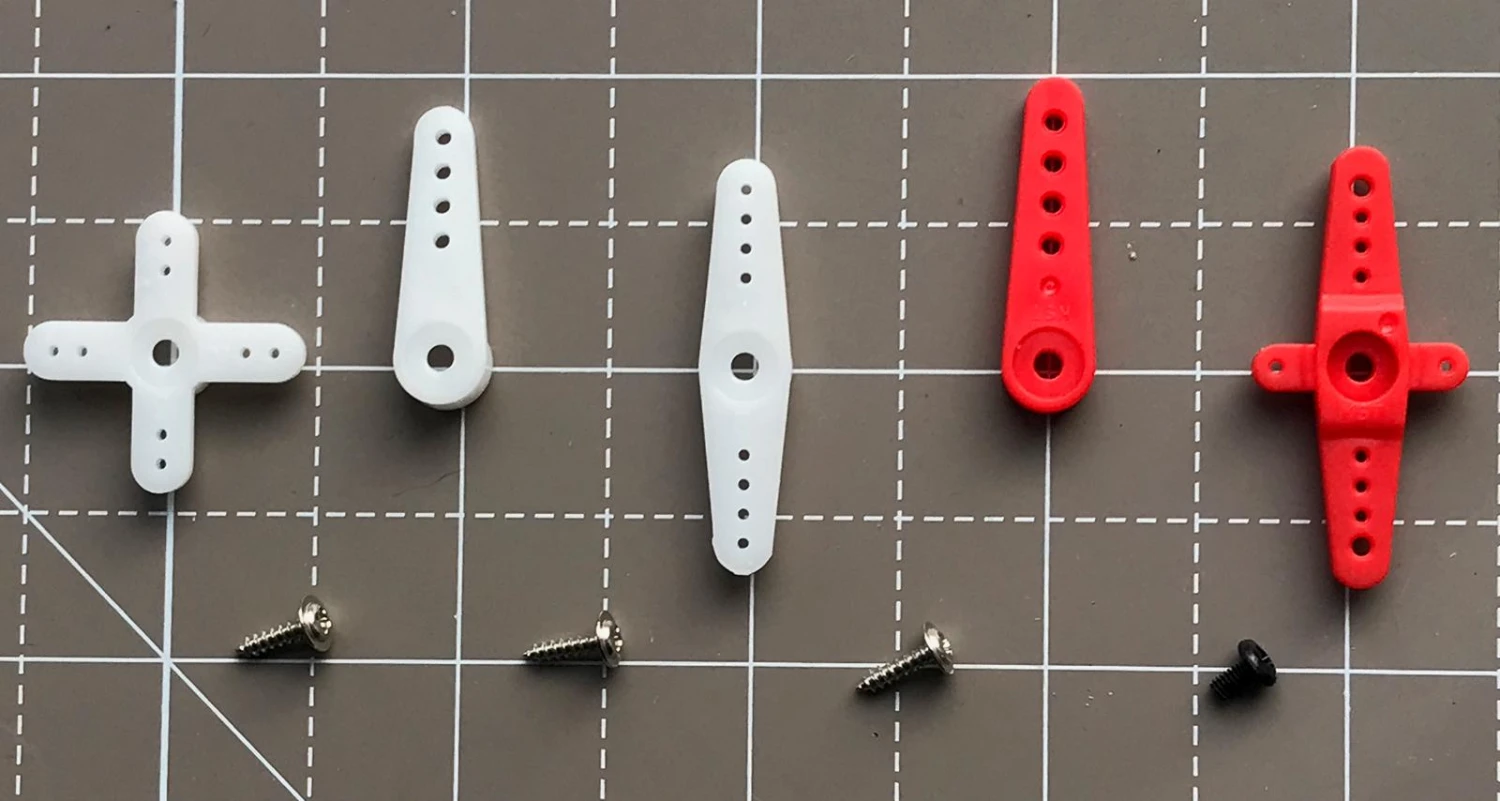

Supplied accessories include two strong red nylon output arms, and three normal strength white nylon output arms.

KST X10 V8 Features

• Slim 10 mm body
• Excellent 10.8 Kg.cm torque
• Compact and light weight design
• Good torque and speed
• Wide 4S NiMH to 2S LiPo voltage range
• Excellent heat dissipation
• 7075 Alloy casing
• Hardened Steel gears
• Designed for lightweight high performance RC Gliders

KST X10 V8 Wing Servo Specifications

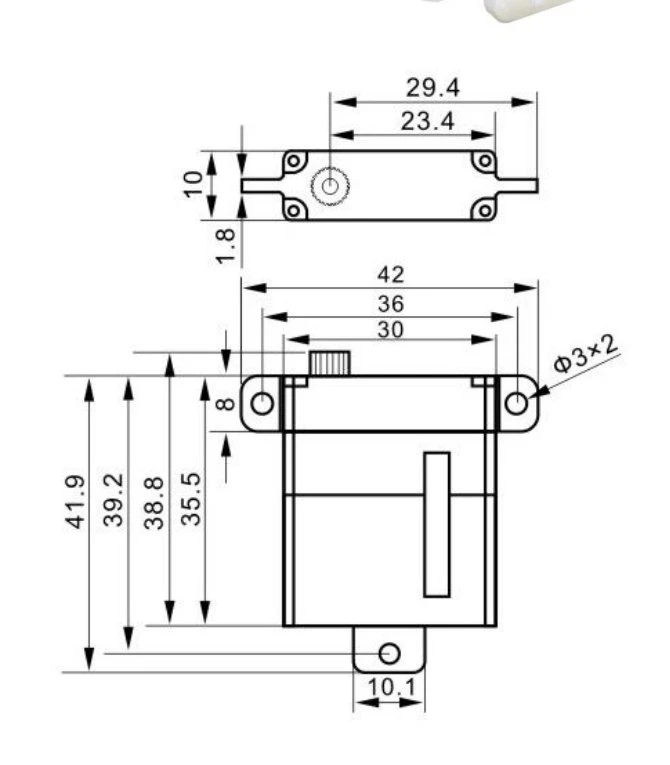

Body dimensions	30.0 mm wide x 10.0 mm thick x 39.0 mm high	1.18″ wide x 0.39″ thick x 1.54″ high
Max dimensions	42.0 mm wide x 10.0 mm thick x 42.0 mm high	1.65″ wide x 0.39″ thick x 1.65″ high
Stall torque (4.8V)	6.2 Kg.cm	86 oz.in
Stall torque (6V)	7.5 Kg.cm	104 oz.in
Stall torque (8.4V)	10.8 Kg.cm	150 oz.in
Weight	28 g	0.99 oz
Lead length	15 cm	5.9 in
Operating speed (4.8V)	0.16 sec/60°
Operating speed (6V)	0.14 sec/60°
Operating speed (8.4V)	0.12 sec/60°
Operating voltage	4.8V to 8.4V
Operating temperature	-10 to +50 °C
Bearings	2 ball races
Gear material	Hardened steel
Case material	7075 aluminium
Motor type	Coreless DC
Working frequency	333 Hz
Dead band/resolution	2 µs
Pulse width for ± 60º	900-2100 µs
Digital	Yes
Programmable	No
Position feedback	Potentiometer
Supplied accessories	5 strong plastic output arms, 2 arm retaining screws, 3 mounting screws
Optional accessories	Ply Frame for KST X10, Integrated Drive System/Mono for the KST X10, Frame with bearing for the KST X10

The V8 version is very similar to the previous servo and is identified by V8.0 printed on the bottom of the case. The only change we are aware of is the wider operating voltage range. The physical size and shape are identical.
