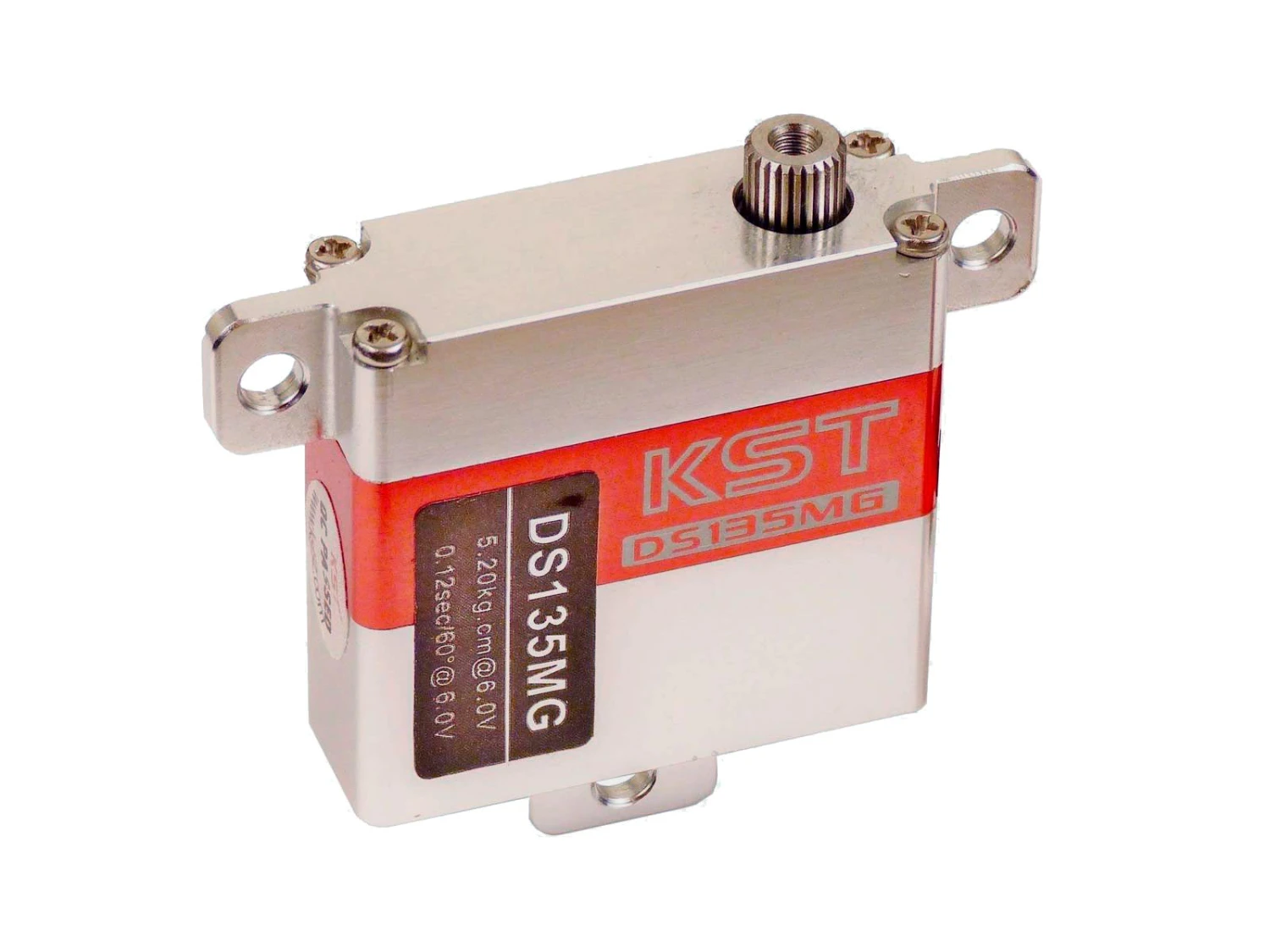

KST DS135MG MINI WING Servo – 5.2Kg.cm 0.12s 23.0g 10mm

The KST DS135MG Mini Wing Servo is an amazingly good metal cased wing servo. It is exactly the same size and has 90% of the performance and build quality of the market leader, for 40% less. Like the more expensive servo it has no geartrain slop.

At only 10mm thick this great wing-servo can easily fit in thin glider and jet wings. With a massive 5.2kg.cm torque the KST DS135 is appropriate for F3F, F3B, F3J, F5J, all fast gliders, and jets.

No longer supplied with metal output arms.

KST DS135MG MINI WING Servo Specifications
Body dimensions	30.0 mm wide x 10.0 mm thick x 29.5 mm high	1.18″ wide x 0.39″ thick x 1.16″ high
Max dimensions	42.0 mm wide x 10.0 mm thick x 40.0 mm high	1.65″ wide x 0.39″ thick x 1.57″ high
Stall torque (4.8V)	4.3 Kg.cm	60 oz.in
Stall torque (6V)	5.2 Kg.cm	72 oz.in
Stall torque (6V)	5.2 Kg.cm	72 oz.in
Weight	23 g	0.81 oz
Lead length	16 cm	6.3 in
Operating speed (4.8V)	0.15 sec/60°
Operating speed (6V)	0.12 sec/60°
Operating speed (6V)	0.12 sec/60°
Operating voltage	4.8V to 6V
Operating temperature	-10 to 60 °C
Bearings	2 Ball bearings
Gear material	Bronze
Case material	Aluminium
Motor type	DC motor
Working frequency	333 Hz
Dead band/resolution	µs
Pulse width for ± 60º	800-2200 µs
Digital	Yes
Programmable	No
Position feedback	Potentiometer

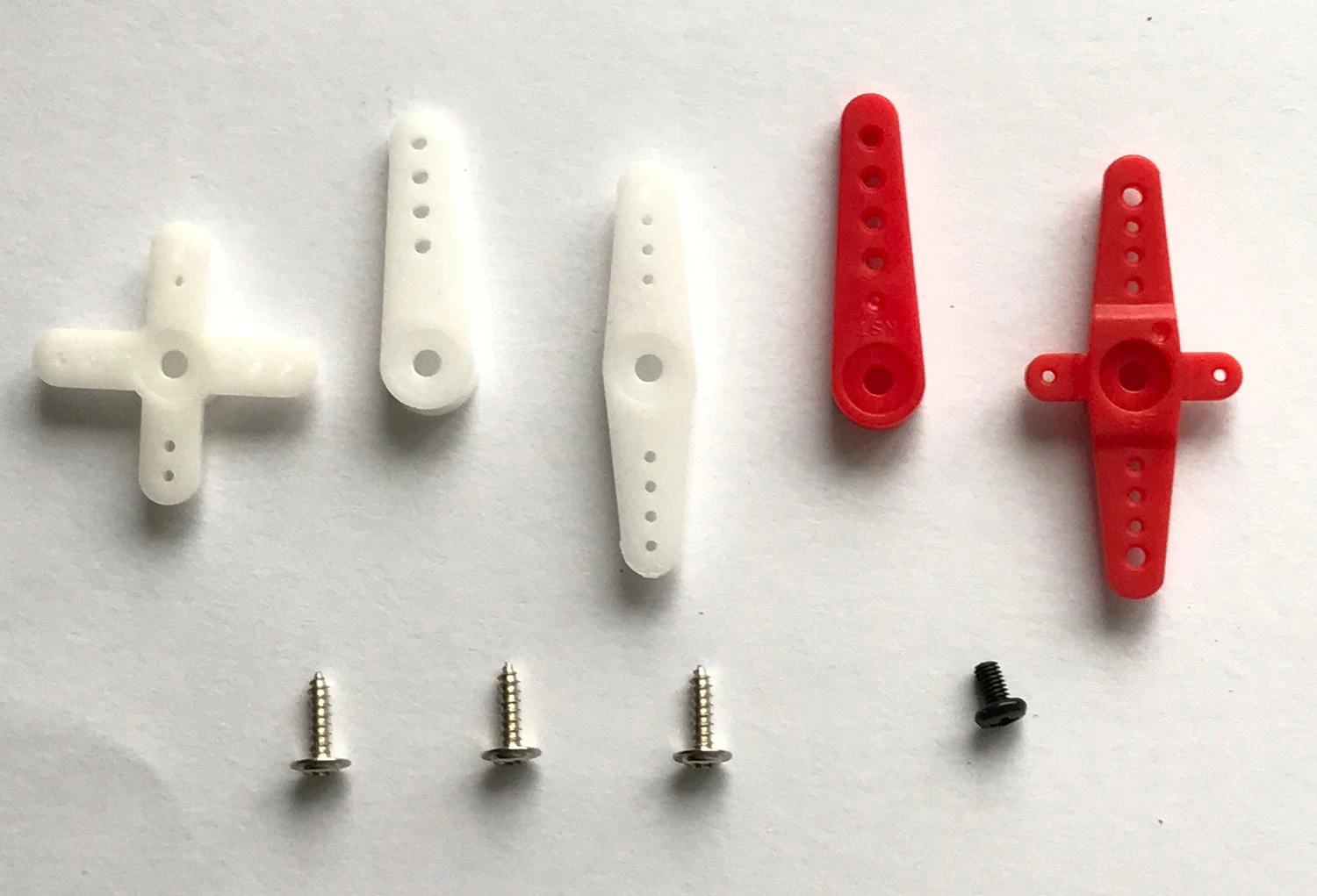

Supplied accessories	3 white plastic output arms, 2 red extra strong plastic output arms, 2 output arm retaining screws, 3 mounting screws
Optional accessories	Frame with bearing for the KST X10, Ply Frame for KST X10 Mini, KST Plastic Servo Arm Set, KST 25T-5 Metal Servo Output Arm, Gear Set for KST X10
