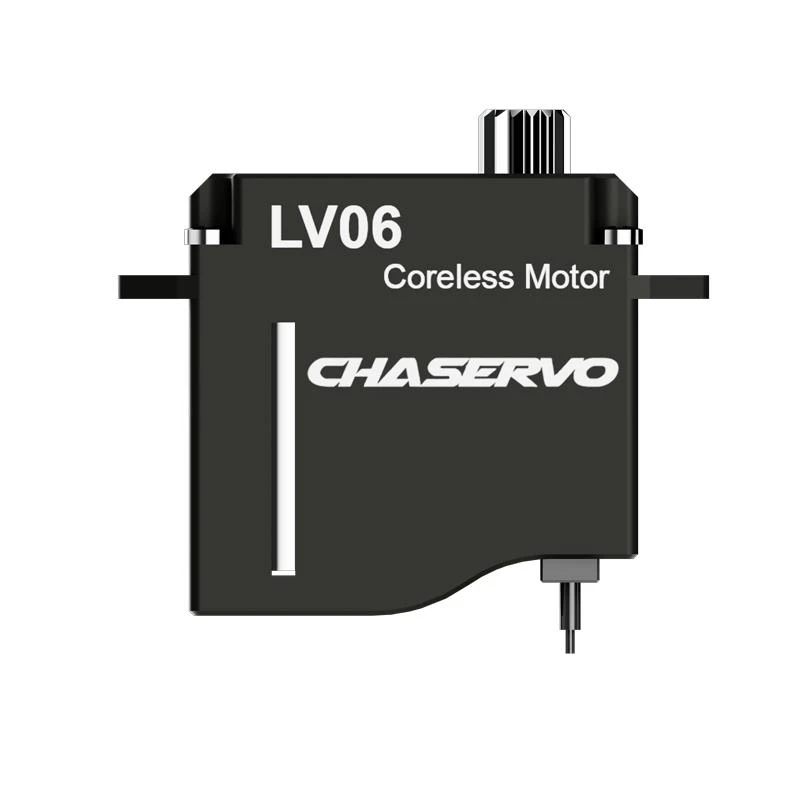

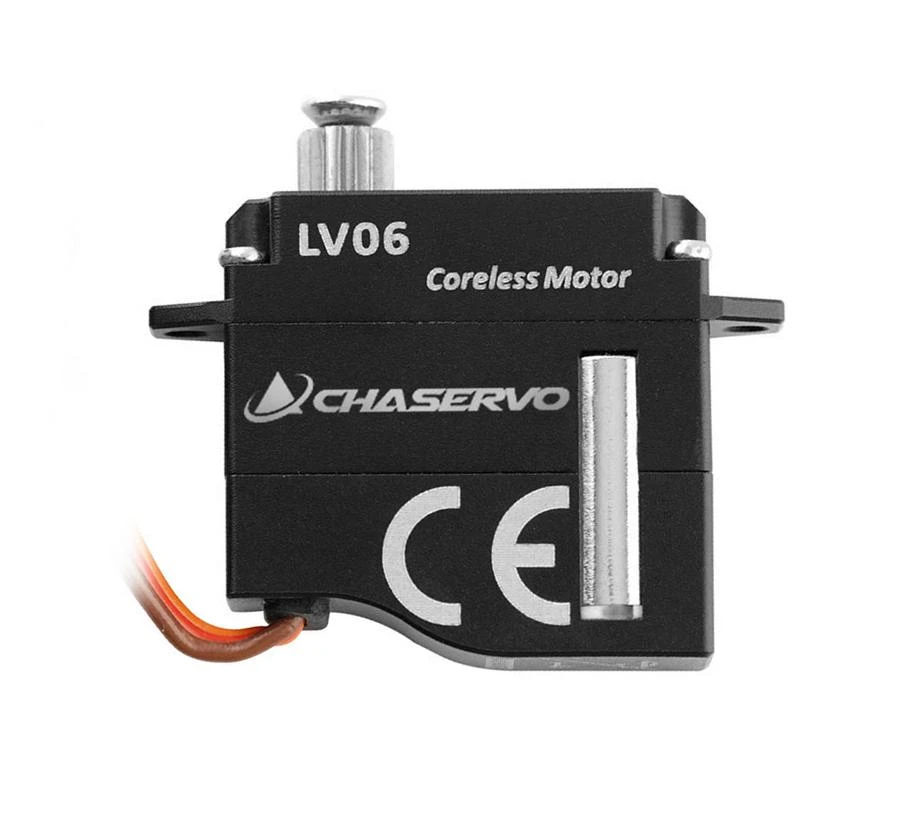

CHA LV06 Servo – 1.7Kg.cm 0.06s 5.8g 6mm

The new CHA LV06 is a very high spec 6mm thin servo that is ideal for gliders and small high performance models.

This version of the LV06 servo has normal mounting lugs (also called mounting tabs) and is for low voltage setups.

The LV06, LV06H, LV06N is the low voltage series and the HV06, HV06H, HV06N is the high voltage series.

CHA LV06 Servo Specifications

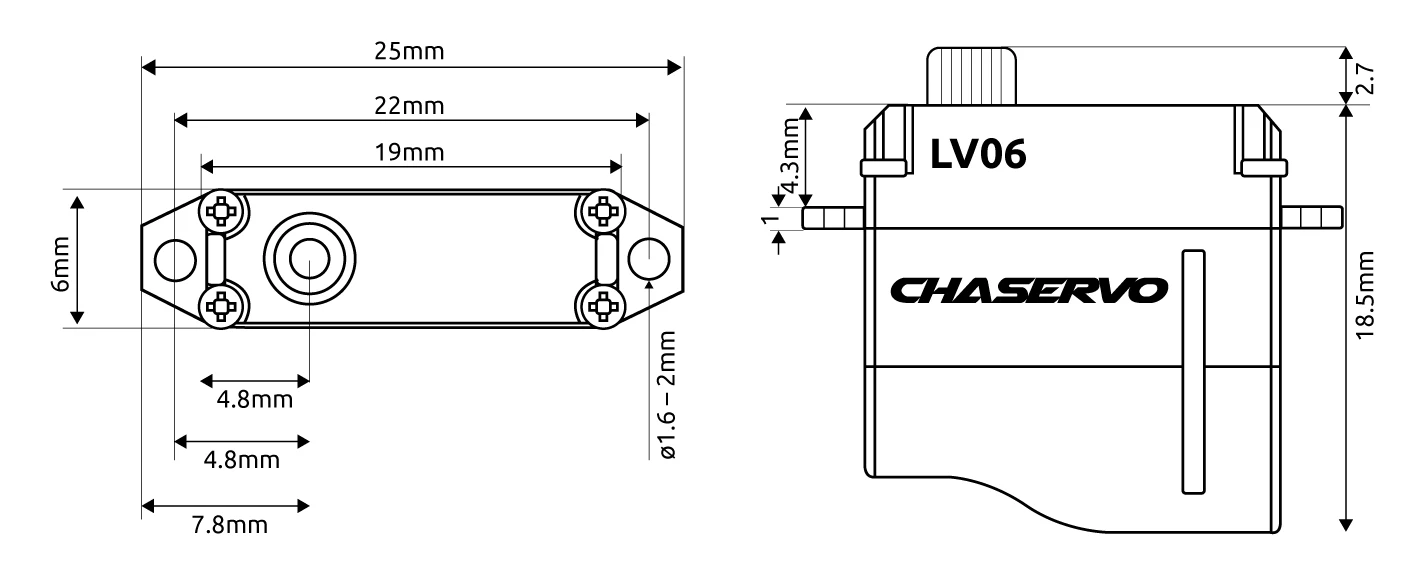

Body dimensions	19.0 mm wide x 6.0 mm thick x 18.5 mm high	0.75″ wide x 0.24″ thick x 0.73″ high
Max dimensions	25.0 mm wide x 6.0 mm thick x 21.5 mm high	0.98″ wide x 0.24″ thick x 0.85″ high
Stall torque (3.3V)	0.9 Kg.cm	12 oz.in
Stall torque (4.2V)	1.3 Kg.cm	18 oz.in
Stall torque (5V)	1.7 Kg.cm	24 oz.in
Weight	5.8 g	0.20 oz
Lead length	14 cm	5.5 in
Operating speed (3.3V)	0.077 sec/60°
Operating speed (4.2V)	0.066 sec/60°
Operating speed (5V)	0.055 sec/60°
Operating voltage	3.3V to 5V
Operating temperature	-10 to +65 °C
Bearings	2 ball bearings
Gear material	Hardened Steel
Case material	Aluminum Alloy
Motor type	Coreless DC Motor
Working frequency	333 Hz
Dead band/resolution	1 µs
Pulse width for ± 60º	900-2100 µs
Digital	Yes
Programmable	No
Position feedback	Potentiometer
Supplied accessories	2 double sided output arms, 2 single sided output arms, 2 arm retaining screws, 4 mounting screws
