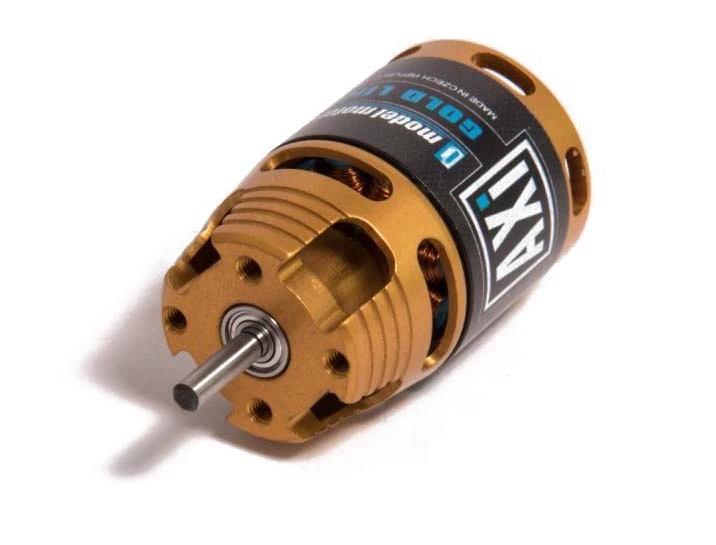

Axi 2217/12 V2 Long 1380 RPM/V 74g Outrunner

The high quality and performance of AXI 2217 V2 motors meant that they were a perfect base for development of the new AXI 2217/12 GOLD LINE. New small and powerful motor AXI 2217/12 GOLD LINE V2 with rotating case is suitable for aerobatic models up to 1000g and for light sailplanes up to 1200g. It has a 3.17 mm hardened steel shaft supported by two large ball bearings to ensure very good mechanical stability.

Thanks to using newest materials this motors achieve in their weight category extremely high efficiency and high load possibility. AXI GOLD LINE V2 with the high quality of manufacturing, reliability and performance are the best outrunners available in the market

The Axi 2217/12 V2 Long is the same as the Axi 2217/12 V2 Long F5J motor but with a 3.17 mm shaft instead of a 4 mm shaft. This makes it a bit lighter.

Axi 2217/12 V2 Long TECHNICAL SPECIFICATION
No. of cells 2-3s Li-Poly
Kv 1380 RPM/V
Max. efficiency 86%
Max. efficiency current 15 – 24 A (>75%)
No load current 0,4 A
Current capacity 32 A/60 s
Internal Resistance 61 mohm

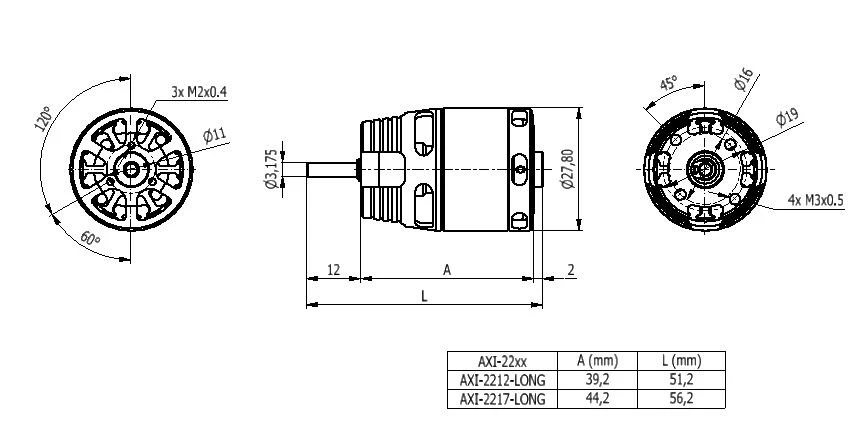

Dimensions (Ø x L) 27,7 x 64,6 mm
Shaft diameter 3.17 mm
Weight 74 g
Max. Power 330 W
